Wastewater Treatment Plant - Discharge ...

Wastewater Treatment Plant - Discharge Area solutions for Flow Measurement in Venturi Flume - Water and Wastewater - Water Treatment

SHARE

Application: Rectangular channel 0.5 x 0.6 m (w x h), made of concrete. Part filled. Upgrading an existing Venturi flume with a measurement system.

Most popular related searches

wastewater treatment plant

wastewater treatment

wastewater plant

water treatment

flow monitoring

ultrasonic sensor

wastewater discharge

flow control system

Detection of wastewater treatment plant discharge using existing Venturi flume
Output of flow volume to control system
Output of volume-proportional m³-impulses for on-site counter

A Q/h related ultrasonic volume measurement Type NivuMaster has been installed.
In order to maintain the measuring uncertainty as low as possible, an ultrasonic sensor with a very low dead zone (Type P-M3, dead zone 0.07m) has been selected to detect impoundage level.
All signals requested by the customer are transmitted from the transmitter to the control system and the on-site counter.

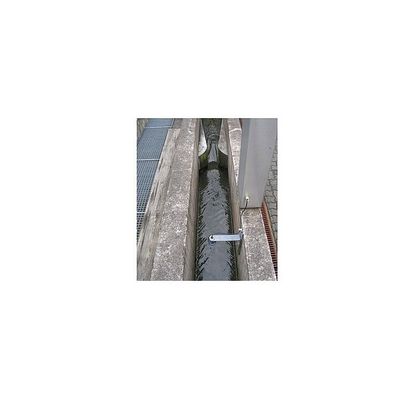

The sensor has been installed above the Venturi flume by using a standard wall installation angle.
