CM-10M Colorimeter

CM-10M Luminance Colorimeter, the best Luminance Colorimeter for optical measurement of FPD. CM-10 and CM-100, via probe measures the luminance of the product directly and reads the value on the LCD screen. CM-10M with standard measurement software that allows you to control the instrument from a computer for continuous and interval measurement, via software to view data and charts.



CM-10M Colorimeter Characteristic

CM-10 Luminance Colorimeter:

Optional handheld controller.

Convenient and flexible device.

Battery powered, widely used in various luminance measurement.

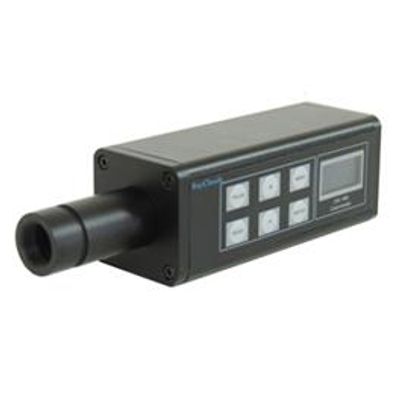

CM-100 Luminance Colorimeter:

Optional desktop controller.

Robust and precise measurement device.

LCD display designed to show measurement values directly.

It can be used in production or R&D, high-speed and high-precision luminance and chromaticity measurement.



High Sensitive Colorimeter

High Transmittance Filter

High Sensitive Photo Diode

Low Noise, High Sensitive Board Design



High Speed & High Accuracy

Iterative Precision:±0.5%(Lv),0.001(x,y)

Accuracy:±3%(Lv),0.003(x,y)

(≤5cd / m 2 , Tack Time 0.5sec)





 CM-10M Colorimeter Advantage

Dark(zero) Calibration

Measurement Dark(Zero) automatically

Imperviousness to temperature and humidity



Wide Iuminance Measurement Range

0.01cd/m2~20,000cd/m2

fast measurement during radical change of Luminance through smart auto-gain Algorithm



Flicker Measurement

Accurate Measurement with High Frequency

Provide Flicker and Luminance Measurement



Spectral Characteristic

The filter response curves are based on the CIE1931 standard

Spectral tolerance of filter curve:≤±1%*λ



 CM-10M Colorimeter Specification

Model
CM-10M
CM-10
CM-100
Receptor
Silicon photo cell(CIE 1931 XYZ filter)
Measurement area
Ø10mm
Ø10mm
Ø10mm or Ø20mm
Working Distance
30±5mm
Acceptance angle
5th
Expose time
1msec~5sec
A/D resolution
16bit
Display Range
0.0001 to 20,000cd/m2
Luminance
Measurement range
0.01 to 20,000cd/m2
Accuracy*¹
0.1~5cd/m2 ±3%(5sec)

≥5cd/m2 ±2%(0.5sec)
Repeatability (σ) * ¹
0.1~5cd/m2 1%(5sec)

≥5cd/m2 0.5%(0.5sec)
Chromaticity
Accuracy*¹
0.1~5cd/m2 ±0.005(5sec,at white)

≥5cd/m2 ±0.003(0.5sec,at white/mono)
Repeatability (σ) * ¹
0.1~5cd/m2 0.005(5sec)

≥5cd/m2 0.001(0.5sec)
Flicker
FMA
Display Range:0~100%;Accuracy:±1%
JEITA
Measurement range:≥10 cd/m2
Frequency range:0~128HZ
Accuracy:±0.5db
Measurement Speed
0.1~5cd/m2
5sec
≥5cd/m2
20/sec
Flicker(JEITA or FMA)
1024/sec
Interface
USB2.0

USB2.0
Operating temperature
5 to50ºC
Input Voltage
USB 5V
USB 5V
AC220V
*1. Measurement of luminance and chromaticity in the RayClouds conditions (using the standard LCD screen (6500K, 9300K)).

*Specifications and appearance are subject to change without prior notice.



CM-10M Colorimeter Ordering Details

Name
Category
Number
Probe
Ø10mm

27MM
CM-P-10

CM-P-27
Data Cable
2m

3m

5m

10m
CM-USB-02

CM-USB-03

CM-USB-05

CM-USB-10
Power
5V-3A
CM-PW-05
CM Software
V1.0
CM-V1.0
Software Manual
CM Software
CM-SM-V1
Key
USB
CM-KEY-19
Calibration Certificate
Standard Light Source A

LED Light Source

Standard LCD at 6500K
CM-CAL-A

CM-CAL-LED

CM-CAL-LCD
Probe Mask（Optional）
Black Mask
CM-PM-01
Bracket（Optional）


Probe Bracket (Big)

Probe Bracket (Small)
CM-BL-01

CM-BS 02
Instrument Bag（Optional）


L*W*H (290*90*90mm）
CM-PK-041
*Note: Please order the appropriate product specifications according to your needs.
