Dilution Air

High Pressure Blower

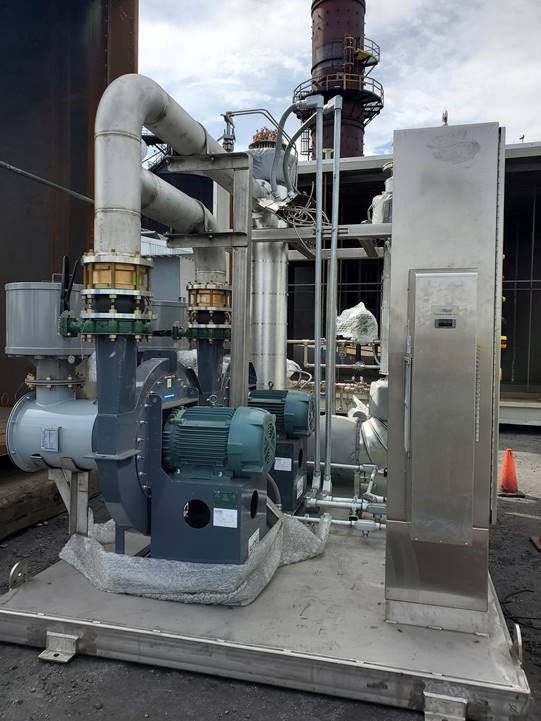

This Dilution Air application required a high-pressure blower on a process skid with a redundant fan and a direct drive motor. The high pressure blower design features a shrouded wheel to move low volumes of air at high static pressures with high operating efficiency.

Dilution air combines with flue gas and is present in power plants, cooling systems, boiler systems, and other industrial systems that produce dirty air. In this application, dilution air blowers provide fresh air to cool hot process air.

Performance: 2,000 acfm airflow @ 43” wg static pressure @ 0.071 lb/ft^3 inlet air density

• Product Type: HPSL (high pressure)
• Size: 257 (25” diameter wheel)
• Class: 100
• Arrangement: 4 (direct drive)
• Horsepower: 25 HP
• Max Design Temperature: 150°F
