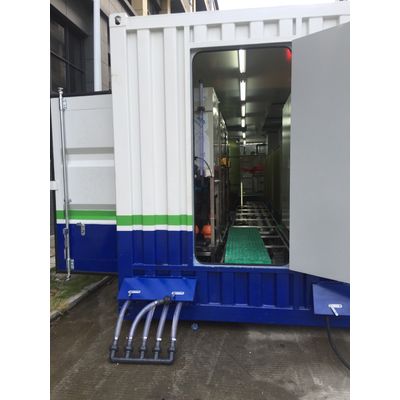

Jiading concentration reduction treatment project

Capacity: 220 tons/day

Influent water quality:

SS<=10mg/L, pH 6.5-9, COD<=1500mg/L, BOD<=1200mg/L, NH3-N<=100mg/L, conductivity<=45000us/cm

Total hardness(as CaCO3)<=1500mg/L, Total akalinity(as CaCO3)<=3000mg/L,SiO2<=50mg/L

Effluent water quality/Discharge standard:

pH 6.5-9, COD<=75mg/L, BOD<=60mg/L, NH3-N<=20mg/L, conductivity<=2000us/cm

Total hardness(as CaCO3)<=125mg/L, Total akalinity(as CaCO3)<=150mg/L,SiO2<=2.5mg/L

We are a specialist in the industrial membrane separation process. The core technology of Jiarong includes the Disk-tube RO membrane system, Spiral-tube RO membrane system, Tubular UF membrane system, and Micro-tube NF/RO membrane system, etc. The main application fields cover leachate treatment, difficult wastewater treatment, flue gas desulfurization, and coal chemical wastewater ZLD.
