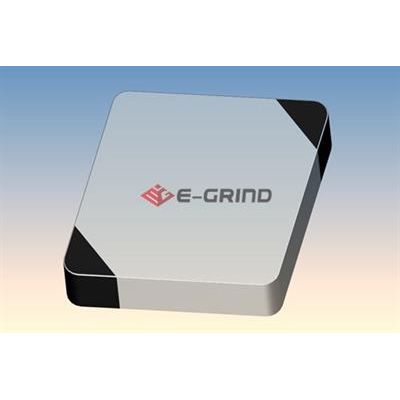

PCD PCBN INSERT

We supply various types of PCD & PCBN Inserts for AUTO Engine Machining Industry, Aerospace Industry, Moto-cycle Industry etc.

With ISO 9001:2000 Certified and more than 60 advanced machines from EWAG, Wendt, DMG, Coborn..., our products are consistent in quality.

Compared with ordinary solid brazed cutting tools, our pcd cutting tools  have the following advantages:

●Convenient to fasten or remove, the position with high speed and accuracy, save exchanging time.

●High wear resistance extends the life of cutting tools.

●Perform high speed, high efficiency, and high precision processing.

●Easy and safe to manage and deliver.

 The standard cutting condition of PCD cutter:

Work-piece material
Working procedure
Code
Speed m/min
Feed mm/rev
Cutting depth mm
Aluminum alloy
4-8% Si
Turning
CKD13/CKD41/CKD10
900-3500
0.1-0.4
0.1-0.4
Milling
1000-5000
0.1-0.3
0.1-0.3
9-13% Si
Turning
CKD10/CKD41
600-2400
0.1-0.4
0.1-0.4
Milling
700-3000
0.1-0.3
0.1-0.3
>13% Si
Turning
CKD15/CKD20
300-700
0.1-0.4
0.1-0.4
Milling
400-900
0.1-0.3
0.1-0.3
Metal synthetic materials
A1 / 10-20% Si
Turning/Milling
CKD25
300-600
0.1-0.4
0.2-1.5
copper alloy
Copper, Zinc, Brass
Turning/Milling
CKD13/CKD10
400-1260
0.03-0.3
0.05-2.0
Turning/Milling
CKD18/CKD20
400-1200
0.05-0.3
0.05-2.0
Tungsten carbide <16%Co

Turning
CKD15/CKD20/CKD25
20-40
0.1-0.25
0.1-1.0
Ceramic
Turning
CKD20
70-100
0.1-0.4
0.2-1.0
Wood
Turning/Milling
CKD13/CKD10/CKD41
1000/4000
0.1-0.4
0.1-4.0
Composite material
Carbon fiber

CKD20
200-2000
0.05-0.3
0.1-3.0


EGrind Abrasives is professional in diamond and CBN products with over 50 years experience. We sincerely invite and welcome people from all around the world to invest and create more values together.
