Resin Bond Mesh Diamond

Friable Diamond

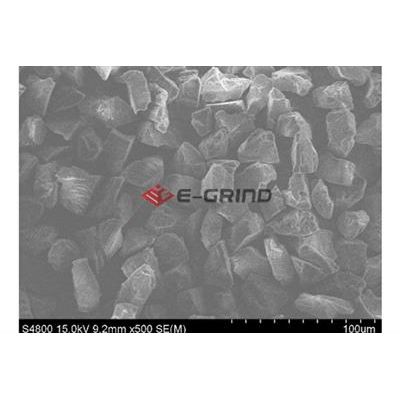

Each Particle is with sub-crystal structure. Irregular and Very rough surface. New cutting edges come out during working.

Also available in electroless plating of both nickel (30% and 56% by wt.) and copper (50% by wt.) allowing for better crystal retention in both phenolic and polyimide bond systems.

Application:

For Resin Bond products system

Application: grinding tungsten carbide, ceramics, glass, and other non-metal materials.

 EA-R 15

Rough and very irregular, Highest Friable, Yellow Green Color

Best self-sharpening performance and high thermal stability, suitable for creep grinding, the good choice for high precision grinding where premium surface finish and form remaining are demanded.

Available sizes: 60/80 through 400/500

 EA-R23

Irregular, medium-high Friable, Yellow Green Color.

Good combination of high free cutting and high surface finish. The first choice for the products with critical cost.

Available sizes: 60/80 through 400/500

 EA-R21

Irregular, low Friable, light Green Color

Similar to EA-R23

Available sizes: 60/80 through 400/500

 ED-B100

Semi-blocky, very low friability, Black

Premium performance in thermal stability

For Vit bond system with good profile retention and sharpness

Available sizes:

ANSI
60/80
80/100
100/120
120/140
140/170
170/200
200/230
230/270
270/325
325/400
400/500
FEED
D252
D181
D151
D126
D107
D91
D76
D64
D54
D46
D32
EA-R22
*
*
*
*
*
*
*
*
*
*
*
EA-11
*
*
*
*
*
*
*
*
*
*
*
EA-R 15
*
*
*
*
*
*
*
*
*
*
*
EA-R21

*
*
*
*
*
*
*
*
*
*
