Self Propelled Work Platform 25-27M

We are professional Self Propelled Work Platform 25-27M supplier and factory in China.We can produce the self propelled platform according to your requirements and provide articulated forklift for sale.

Self Propelled Work Platform 25-27M Product Features

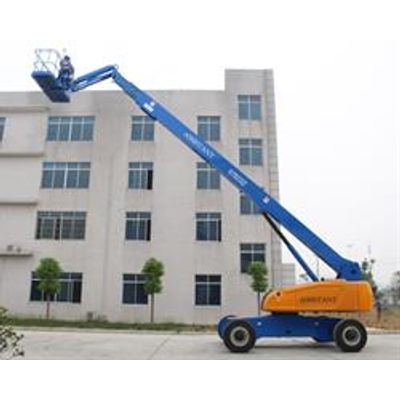

GTBZ25 & GTBZ27Z SELF PROPELLED AERIAL WORK PLATFORM (TELESCOPIC BOOM)

High Safety of Body Structure

Patented Weighting System

It can accurately weight what on the platform with automatic division of various load levels; Precise Weighting Ability in all locations of the platform for objects or human beings; Automatic power cut-off and alarm with light and sound when the platform is over-loaded.

Patented Socket Tow-Chain System:it avoid serious disorder and rupture of the cables and oil-pipes, which is caused by over-bending of boom and cantilever tow-chain.

Unique Lift Arm Design and Structure

The boom is made of high-strength steel plate, which guarantee our products having sufficient strength ,resistance ability to deformation. Through the methods of finite element analysis and dynamic simulation, the boom can realize lightweight design.

Travelling System

Axis Oscillating: driven by hydro-cylinder, the wheel axis oscillating can fully ensure stability of the whole machine when working.

Four-Wheel-Drive and Solid Tires: four turning modes including front-wheel, rear-wheel, front &rear turning and slanting drive, powerful gradeability.

Electrical Controlling System

Automatic Range Restrictor: safety alarm, auto speed-limiting and range restriction function which is controlled by intelligent system.

Double Sensors and Dual-poop Protecting Circuit: to guarantee high reliability and durability of the whole electrical controlling system.

Advanced CAN-BUS Controlling Mode: simple circuit, easy maintenance and excellent reliability.

High-Quantity Steel Connector of Aerial Craft: the protection level reach IP65.

Emergency Power Unit: ensures retracting in case of engine failure.

Humanizing joystick: makes operators feel convenient and comfortable.

Emergency Power Unit and Joystick of control box

Hydraulic Press System

Made-in-European or in-America hydraulic parts ensure a high reliability. All moves are achieved through stepless change-over by electric-hydro proportional valve, which enhance the machine’s jiggling ability.

The hydraulic system are composed of oil-absorbing filter, high-pressure filter and return oil filter, Which fully ensure the cleanliness of the hydraulic oil.

Parameters

Main components list

NO
Name
Brand
1
Engine
Cummins from JapanOR Perkins fromUK
2
Variable pump
Rexroth from German OR SAUER from USA OR Sam fromItalyOR Eaton from USA
3
Gear pump
MARZOCCHI fromItalyOR SALAMI fromItaly
4
Travel motor
Rexroth from German OR SAUER from USA
5
Travel reducer
Rexroth from German OR Reggiana Riduttori fromItalyOR PMP fromItaly
6
Hydraulic valve
Oil-control from ItalyOR Hydroforce fromUSA
7
Rotary motor
HELAC fromUSA


MODEL
GTBZ25
GTBZ27Z
MEASUREMENTS
Meters
US
Meters
US
Working height maximum *
26.9m
88ft
28.4m
93ft
Platform height maximum
25.2m
83ft
26.7m
88ft
Horizontal reach maximum **
21.9m
72ft
23.4m
77ft
Below ground reach
2.56m
8ft
3.73m
12ft
A
Platform length-8ftmodel
0.91m
3ft
0.91m
3ft
Platform length-6ftmodel
0.76m
2ft
0.76m
2ft
B
Platform width-8ftmodel
2.44m
8ft
2.44m
8ft
Platform width-6ftmodel
1.83m
6ft
1.83m
6ft
C
Height-stowed
2.8m
9ft
2.8m
9ft
D
Length-stowed
11.36m
37ft
12.46m
40ft
IS
Width
2.49m
8ft
2.49m
8ft
F
Wheelbase
3.0m
8ft
3.0m
8ft
G
Ground clearance-center
0.43m
1ft5in
0.43m
1ft5in
PRODUCTIVITY
Lift capacity (restricted)
480kg
1056lbs
480kg
1056lbs
Lift capacity (non-restricted)
260kg
572lbs
200kg
441lbs
Platform rotation
160°
160°
Jib rotation
-
135°
Turntable Swing
360°continuous
360°continuous
Turntable tail swing
1.32m
4ft4in
1.32m
4ft4in
Travel speed -stowed
5.3km/h
3.3mph
5.3km/h
3.3mph
Travel speed -raised or extended
1.1km/h
0.68mph
1.1km/h
0.68mph
Gradeability -stowed (2WD)
30%
30%
Gradeability -stowed (4WD)
45%
45%
Turning radius - inside
3.59m
11ft9in
3.59m
11ft9in
Turning radius –outside Turning radius - axle extended outside
6.25m
20ft
6.25m
20ft
Controls
24V DC Proportional
24V DC Proportional
Solid tires
12.00-20/8.5
12.00-20/8.5
POWER
Power source
Commins B3.3 75HP (56kw) Perkins 400 76 HP (56kw)
Auxiliary power unit
24V DC
24V DC
Hydraulic tank capacity
190L
190L
Fuel tank capacity
150L
150L
WEIGHT
2WD
16300kg
35860lbs
16440kg
36168lbs
4WD
16380kg
36036lbs
16520kg
36344lbs
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008
