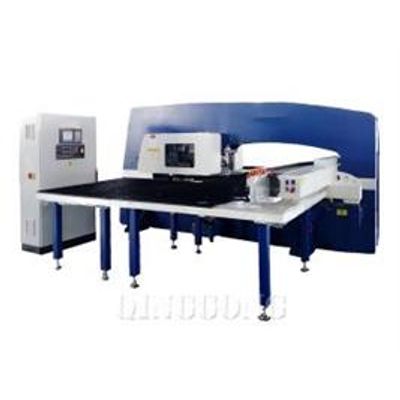

SERVO CNC TURRET PUNCHING MACHINE

The main transmission of servo CNC turret punching machine is directly from drive servo motor, which retains the advantage of a simple and reliable structure as mechanical transmission, it features  high efficiency, energy saving, low noise, high accuracy, and can realize many processes like die-cutting, forming, beading, lettering and so on.



Features



Servo drive(it can be also called servo punch press  )



Direct driving structure



Sealed oil tank, prefect lubricating with lower temperature rising.







Turret



32 working stations



Material: 40Cr



Pair machining in large scale machine center.



Adopt Amada standard long tools.



Super high accuracy position pin ensures the aligment of punch and die







Auto-index



Worm and gear driving structure ensures the accuracy of double direction.



Singal synchronous driving belt ensures the accuracy of punch and die.



Bushing



Each station has high accurate bushing.



40Cr material



International standard long toolings







Driving



T axis is driving by one servo motor with chains



C axis is driving by one servo motor with a belt.



Basic Specification

Serial
Name
unit
Parameters
1
Model
/
S30-A
S30-B
2
Workstation
number
26
32
3
Punching pressure
KN（T）
200 (20)
4
Punching form
/
servo drive
5
Frame structure
/
Closed bed
6
machined sheet metal
X
mm
5000（Relocating with one time）
Y
mm
1250 or 1500
7
thickness of machined sheet metal
mm
<6
8
stamping frequency
cpm
<1500
9
Pliers number
only
3
10
Clamp mechanism
/
Pneumatic
11
Repositioning cylinder
set
2
12
Rotating station
/
2
13
Control axis number
/
5（X、Y、W、C、A）
14
Turntable diameter
mm
1040
15
Mould form
/
Thick turret and long die
16
Worktable structure
/
Brush plate and floating universal ball
17
Punching accuracy of primary positioning
mm
±0.1
18
maximum carrying weight
Kg
<150
19
Gas source
Mpa
0.5
20
Total power
KW
30
twenty one
speed of sheet movement
m / min
<70
twenty two
Rotating tower speed
r / min
30
twenty three
Machine weight
your
12
twenty four
Outer size
mm
4600*5100*2000


Mold distribution


A

～12.7mm
B

～31.7mm
C

～50.8mm
D

～ 88.9mm
26 turret (including 2 B stations rotating)
10
12
2
2
32 turret (including 2 B stations rotating)
16
12
2
2
