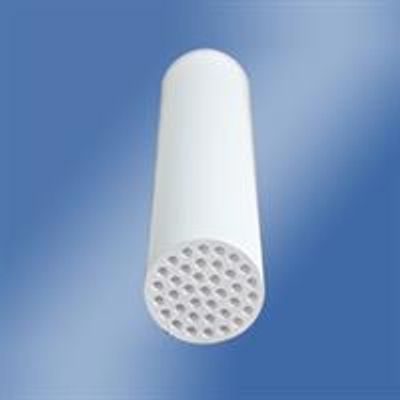

Ultrafiltration Ceramic Membrane Element

JIUWU company produces the ceramic ultrafiltration membranes with the pore size 20nm, 50nm and so on. JIUWU company offers a large choice of ceramic membranes with different geometries and cut-offs to meet your process requirements in viscosity, molecule size, impurity profile, purity and yield target, etc. as well as cleaning and sanitization procedures.

OVER VIEW OF ULTRAFILTRATION CERAMIC MEMBRANE ELEMENT
Ultrafiltration ceramic membrane is a variety of membrane filtration in which forces, such as pressure or ceramic membrane manufacturers, cause separation through the semi-permeable membrane. High molecular weight suspended solids and solutes remain in the so-called retentate while water and low molecular weight solutes pass through the membrane in the permeate (filtrate). The pore size of the ultrafiltration ceramic membrane is in the range of 0.01μm ~ 0.05μm, suitable for the separation, concentration, and purification of macromolecules and small molecules.

A versatile and economical solution for clarification, concentration, and purification of liquids, ultrafiltration ceramic membrane could remove emulsified oils, metal hydroxides, colloids, bacteria and viruses, emulsions, dispersed material, suspended solids, and other large molecular weight materials from water and other solutions. Ultrafiltration ceramic membrane also serves in critical parts of the production processes of fruit juice, milk and whey, electrocoat paints, pharmaceuticals, poly-vinyl alcohol, and indigo dye. It is key to surface water treatment for potable uses and wastewater treatment for reuse. Ultrafiltration ceramic membrane is used to recycle flow or add value to later products and more. In many cases, ultrafiltration ceramic membrane is used for prefiltration in reverse-osmosis plants to protect the reverse-osmosis process. Ultrafiltration ceramic membrane is an effective means of reducing the silt density index of water and removing particulates that can foul reverse osmosis membranes.

APPLICATION OF ULTRAFILTRATION CERAMIC MEMBRANE ELEMENT
Food & beverage
Bio-pharm
Chemical and petro-chemical
Water & wastewater treatment
ADVANTAGE OF ULTRAFILTRATION CERAMIC MEMBRANE ELEMENT
High flux
Reliability
Well-proven long operating life
Ease of use, clean, regenerate
Stable over a wide pH (0-14) range and chemical compatibility
Sterilization by steam and oxidizing agents
Wear ability and excellent strength
Narrow pore size distribution
Stringent quality control process and procedures with full trace ability
Excellent performance in MF/UF & thermal stability
