Welded Gabion Mesh

Welded Gabion Baskets & Panels | Rigid Gabion Mesh for Construction
We supply rigid welded gabion panels in galvanized, Galfan and PVC-coated options. Our standard wire gauges run from 3.0mm to 5.0mm, paired with mesh apertures of 50×50mm, 75×75mm and 100×100mm. A full range of basket sizes and assembly fasteners are also available. Boasting rigid structure and tidy box appearance, our products work well for landscaping, retaining walls, river control and roadside infrastructure works.

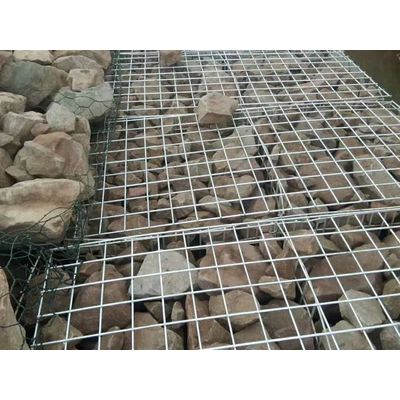

Welded gabion mesh consists of rigid welded wire panels, manufactured to assemble stone-filled baskets, landscape walls, retaining structures and erosion control units. We adopt hot-dip galvanized wire, Galfan wire and PVC-coated galvanized wire as raw materials.

Baskets are assembled from flat welded panels using spiral binders, C-rings, clips or lacing wire. Internal stiffeners are fitted on exposed sides to prevent panel bulging after stone filling. Unlike twisted gabion mesh, welded gabions deliver flatter surfaces and standard box shapes, ideal for projects requiring tidy appearance, neat alignment and modular installation.

Specifications
Material: Hot-dip galvanized steel wire, Galfan-coated steel wire, PVC-coated galvanized steel wire
Wire Diameter: 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Mesh Aperture: 50mm×50mm, 50mm×100mm, 75mm×75mm, 75mm×100mm, 100mm×100mm
Basket Size: 0.5m×0.5m×0.5m, 1m×0.5m×0.5m, 1m×1m×1m, 2m×0.5m×0.5m, 2m×1m×1m, 3m×1m×1m
Panel Form: Supplied as flat welded panels for on-site assembly; pre-assembled units available on request
Fasteners: Spiral binders, C-rings, clips and tie wire, selected according to basket size and assembly method
Stiffeners: Internal bracing wires or hook stiffeners for tall basket faces
Surface Treatment: Post-weld hot-dip galvanized, pre-weld galvanized, Galfan coating, PVC coating over galvanized wire
Corrosion Resistance: Standard galvanized for dry outdoor and landscape use; Galfan or PVC coating for wet soil, riverbanks and long-term exposure
Filling Stone: Hard rock, crushed stone, cobblestone and decorative stone. Stone size must exceed mesh aperture
Packing: Flat panels bundled on pallets; fasteners and stiffeners packed separately
Installation Guidance: Confirm foundation, drainage, backfill and design requirements before building retaining walls
