3V Tech products

Nutsche pressure filter; Recommended for pressure filtration, "re-slurry" washing, smoothing & displacement washing and product discharge

Nutsche pressure filter-dryer. Recommended for: pressure filtration,
`re-slurry` washing, smoothing and displacement washing, vacuum drying & product discharge. Includes: removable flat bottom flanged to
the cylindrical vessel, filter media, heated agitator designed with special teeth able to optimize the smoothing of the cake, vacuum drying and product discharge without incurring any mechanical damage to the product, double mechanical seal, dust filter, side mounted discharge port, CIP washing system for all of the internal contact surfaces. Validated CIP.

Nominal capacity : AE 63 - 6.300 L. Design Data: Pressure: - 1 to +6 bar. Temperature : -25 to +200°C. Design and Calculation Codes: VSR/AD-Merkblatter/ASME VIII div.1/CE stamp. PED 97/23/EC module cat. IV.

Nominal capacity : BE   1.000 - 32.000 L. Design data : Pressure: - 1 to +6 bar, Temperature : -25 to +200°C. Design and calculation codes : VSR/AD-Merkblatter/ASME VIII div.1/CE stamp,  PED 97/23/EC module cat. IV. Construction tolerance : To DIN 28006 T2.

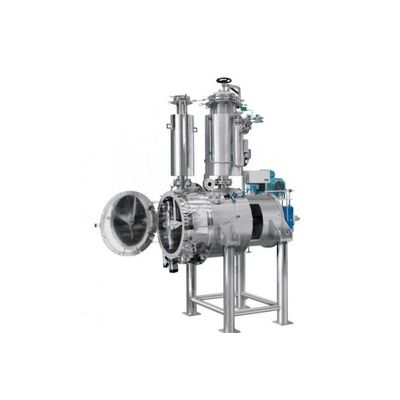

Horizontal vacuum paddle dryer. Recommended for vacuum drying of powders. Includes: a quick-opening, hinged flat end, a welded flat end, a special cantilevered agitator with heated paddles, a double mechanical seal, a dust filter, and a discharge valve.
