Brightwin products

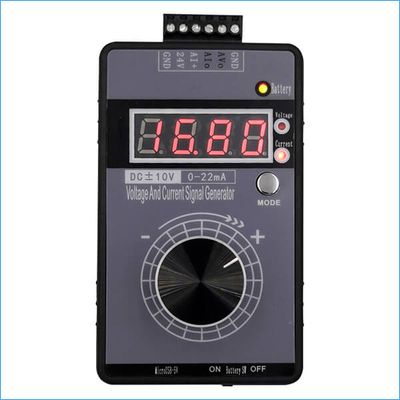

BRT LB02G Upgraded New Adjustable 0-20mA 4-20mA 0-±10V signal generator is a compact portable -10V- +10V, 0-3.3V, 0-5V, 0-10V, 0-20mA, 0-22mA, 4-20mA source and sink signal generator and simulator. Its output signal range and LED display mode are adjustable and programmable through the encoder’s button. Its current or voltage signal output accuracy can be calibrated by users and display resolution is two decimal points. This analog 0-10V 0-22mA signal generator supports micro-USB port power supply through power bank, 5VDC output power adapter, PC USB port, 24V power supply from other devices in industrial site, etc. It is an ideal low-cost industrial level accurate intelligent debugging and testing tool for technicians.

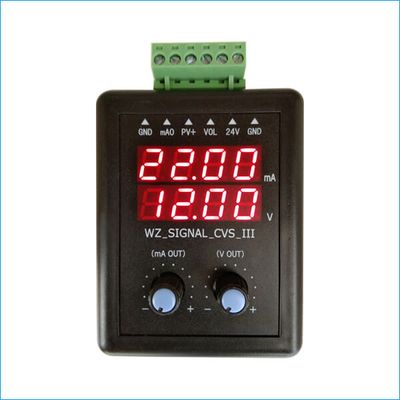

BRT VIG-B5 WZ-SIGNAL-CVS-III Adjustable 24V 0-10V 4-20mA signal generator is a portable dc current source or sink signal and voltage signal generator and tester device. It generates 0-22mA, 0-20mA, 4-20mA, 0-5V, 0-10V, 0-12V, 24V, etc. standard dc analog signal which can be adjusted by precision encoder adjusting button. This signal generator supports battery and micro-USB power supply, it makes it easy to be used in outdoor industrial site after fully charge it. High stability, easy-to-use, LED accurate display, it becomes an essential debugging and testing tool for technical engineers.

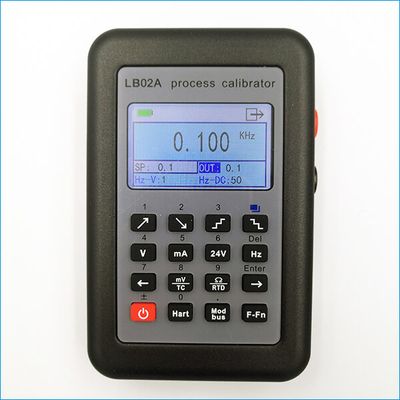

BRT LB02A Process calibrator is a high precision reliable mV mA V frequency temperature signal debugging tool with measuring meter function. It can output and measure 0-20mA 0-10V 0-110mV 24V signal, thermocouple signal, PT100, Cu50 RTD signal, resistance signal, etc. And it is widely used as mV mA calibrator, temperature calibrator, frequency signal calibrator, 4-20mA loop calibrator, multimeter, etc. It supports full function operating mode and user-defined output setting. The signal calibrator can output user-defined signal when user enters into signal value through digit buttons. That process calibrator has color LCD screen, large capacity rechargeable battery, refined external shell, simple buttons layout, it is an ideal low cost precision process controlling signal calibration instrument for field technical engineers.

ETX-1825 Multifunction Process Calibrator has process calibrator functions and multimeter functions and combined two meters all in one. This multifunction process calibrator covers all the functions required in signal calibration and measurement in industrial site. Its source simulation output and measurement functions are designed independently and can work at the same time. It has automatic cold junction compensation and 3-wire/4-wire auto recognition function. Its power supply support 6 units AAA dry battery, external shell is in IP67 water-proof level. It is an ideal portable process calibrator and multimeter for user to do calibration in the lab or in outdoor industrial sites, and a low-cost solution of the replacement of other brands precision multifunction process calibrator.

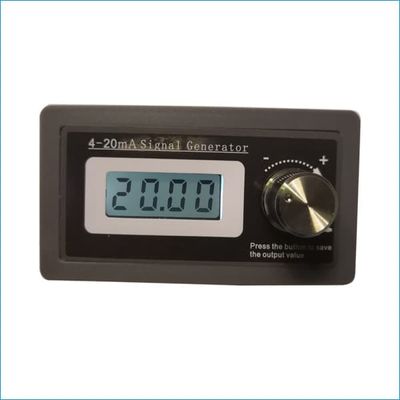

BRT 420LGPM (New Version) Programmable 2-wire 4-20mA signal generator is a precision adjustable panel-mounted 4-20mA current loop simulator or signal generator with LCD display. Its output range is switchable between default 4-20mA and max. 3-21mA, output accuracy is 0.5%. And output signal is displayed exactly in current value 4.0-20.0 mode or 0.0-100(%) mode or 0.0-50.0(Hz) mode, the LCD screen has back light for different light conditions. Its current signal display modes and adjusting steps can be set through digital encoders’ knob. This low cost 4-20mA loop simulator also can output curves preset dynamically. It is ideal to use in meter, sensor signal testing, PLC, DCS and other instruments signal debugging, etc.
