Concoa products

CONCOA cryogenic systems are designed to maintain the pressure and flow of demanding applications. Cryogenic liquid cylinder performance is often misunderstood. The liquid cylinder`s specifications typically list gas phase withdrawal directly from the cylinder in the range of 350-400 SCFH. In practice, however, the maximum sustainable flow rate without pressure drop is only 200-250 SCFH. The limiting factor is often the cylinder`s pressure-building coil circuit.

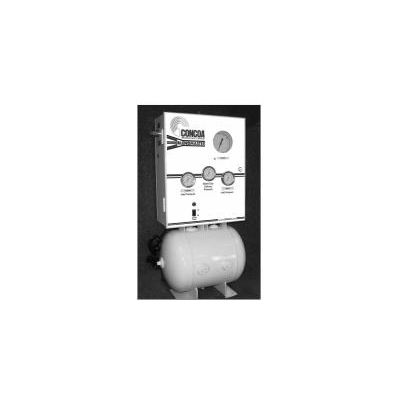

The BlendMaster 1750 Series mixer precisely blends shielding gas for GMAW (MIG) and GTAW (TIG) welding. Argon-Carbon Dioxide mixes are consistently delivered to those industrial applications requiring repeatability and control. Available in wall or floor mount and 120 volt or 220 volt configuration, the BlendMaster 1750 delivers the flexibility that yields a low cost of ownership.

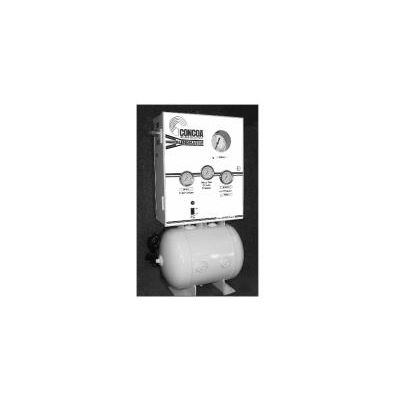

The 655 Series BlendMaster is designed to supply Argon- Oxygen shielding gas mixtures on-site for mild and stainless steel MIG (GMAW) welding. The blender provides up to 850 SCFH over the range of 0-10% Oxygen, balance Argon. CONCOA 6700 Series inlet regulators maintain mix accuracy by eliminating pressure fluctuation effects encountered while filling micro-bulk and bulk supply sources.

The BlendMaster 1000 Series mixer precisely blends binary mixtures for the metal fabrication industry. Carbon Dioxide and Helium minor component mixes are consistently delivered to those industrial applications requiring repeatability and control. Available in wall or floor mount and 120 volt or 220 volt configuration, the BlendMaster 1000 delivers the flexibility that yields a low cost of ownership.

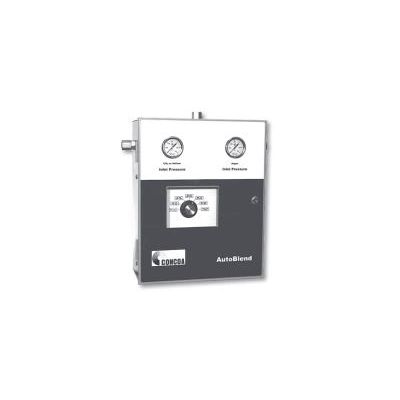

The 650 Series AutoBlend allows the end-user to select from seven preset gas blends for welding applications. The blender provides 600 SCFH regardless of the selected blend. The low inlet pressure range maintains accurate mixing tolerances even during the filling of a bulk or micro-bulk supply source.

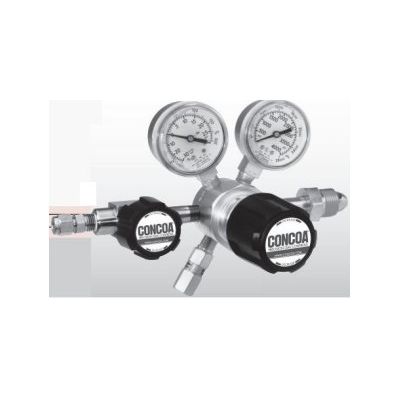

The 401  Series regulators are intended for primary pressure control of non-corrosive, high purity or liquefied gases, or for applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated.

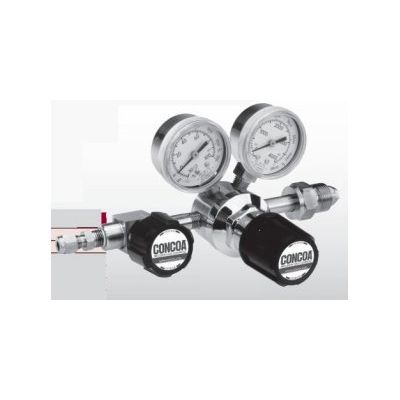

The 402 Series regulators are intended for primary pressure control of non-corrosive. high purity or liquefied gases, or for applications where  minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated.

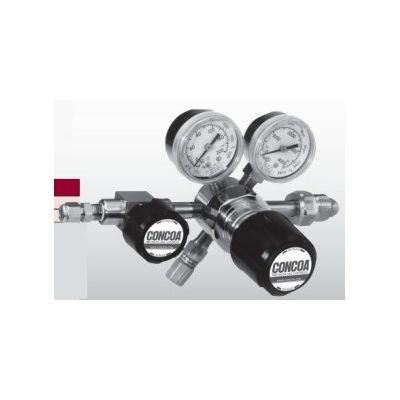

The 302 Series regulators are intended for primary pressure control ol non-corrosive, high purity or liquefied gases or for applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated.

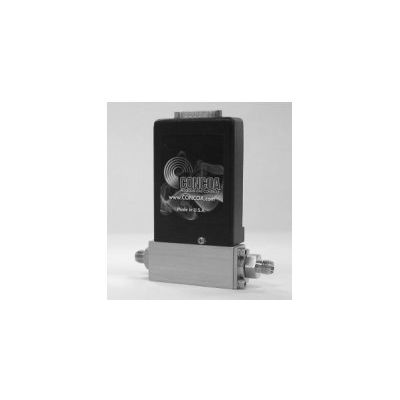

The CONCOA Mass Flowmeter (MFM) and Mass Flow Controller (MFC) Series are based on a modular design. At the heart of each instrument is an insulated thermal transfer sensor which provides enhanced zero stability. This sensor is designed to virtually eliminate
long downtime due to clogging. Additionally, the MFM/MFC design features an integral filter and an easily replaceable closed loop electronics card.

CONCOA`s CCD100 Controller Display features a graphical VFD display which displays the relevant units and generates ease of use menu structures.   The Controller Display contains digital comms. alarm outputs, configurable units and multiple transducer supplies as well. The unit`s firmware can also be customized for specific applications. The CCD100 not onry contains internal setpoint functions but also features external inputs which can be used to generate slaved setpoint from another processor/transducer. The unit can also be programmed for tamper-resistant functionality by hard wiring the interface connector.  The user can lock out the menu command and/or zero out the command button. The user-friendly menu structure allows the CCD100 to be programmed easily. All menus feature backwards and forwards options as well as up and down numeric inputs.
