Conmark Systems products

Conmark® ProEye™ CS resets the bar in consistency measurement and control by using a patented measuring technique to determine the total consistency properties of a pulp mixture. Add Conmark® remote calibration and configuration service combined with intuitive configuration menus, makes the ProEye unlike any other consistency transmitter on the market today. Troubleshooting and verification testing can be completed remotely by mill personnel or aided by Conmark Systems. Now individual consistency measurements can be easily managed or can be integrated into a Variability Reduction program to benefit production. The ProEye CS measures by continually calculating a matrix of strobed LED responses from the furnish in ???real-time ??? to provide a consistent reading for use by operations.

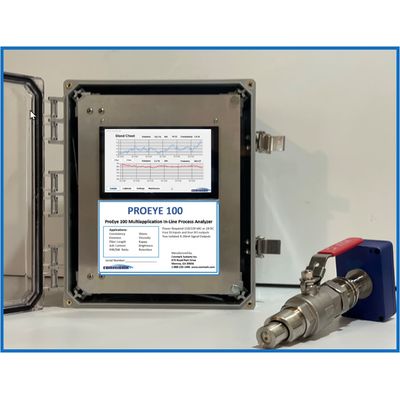

Pro-Eye 100 uses a proprietary measuring technique to determine the properties of the pulp. By calculating a matrix of strobed LED responses from the furnish, the Pro-Eye 100 produces real-time Pulp properties reading for use by operations. Pro-Eye 100 has two independent process variables it can measure simultaneously, like Consistency and Freeness or Ash and Consistency. Typical applications include chemical, mechanical, and recycled pulp and paper machines. The Pro-Eye 100 does not require maintenance. Unlike other online measurement technologies, Pro-Eye 100 provides real-time process measurements for more precise process control. Pro-Eye 100 is manufactured 100% in the USA.

Bad agitation is the major source of variability in current Pulp and Paper Processes and with Conmark Agitators it can be drastically improved. If a pulp and water mixture is allowed to stand in a chest for just a short period of time, the fiber and water mixture will begin to separate. When this occurs, the chest contents are composed of irregular high-consistency zones that cannot easily be re-introduced to the papermaking process. These stock irregularities create consistency variations. Agitation in a stock chest is the only way to keep the stock from dewatering. Conmark’s Mixers and Agitators are a unique solution that can be retro-fit to your existing installations.

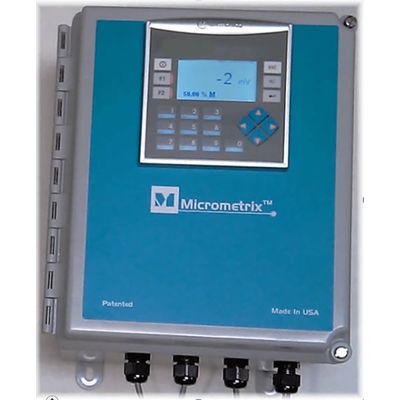

The Wet End Charge Analyzer gives the ability to optimize wet-end chemistry and control anionic trash. The Charge Analyzer is used as well to quantify the effect of various additives on system charge, providing a useful tool for assessing and improving process efficiency. Manufactured for easy maintenance and excellent reliability, the online Wet End Charge analyzer is the most proven technology available in this field. The analyzer is suitable for process control as well as an information source. Also, no chemicals are needed for measurement and all the materials have been specially chosen for corrosion resistance.

The TAPIO Roll Quality Profiler is a versatile and efficient tool designed for easy and fast roll quality maintenance. It serves as a paper roll hardness tester, film roll hardness tester, and can be used for measuring various other types of rolls. Its measurement system offers a simple procedure to ensure smooth roll performance at customer sites. With TAPIO RQP Profilers, you can obtain hardness profiles that excel in detecting quality variations compared to QCS scanners. This is made possible because the Tapio RQP accurately measures hundreds of layers in a single measurement. As a result, the connections between RQP profile variations and issues such as bagginess become significantly clearer and easier to identify.
