DAT Instruments srl products

Introduced at the Bauma Exhibition, the new datalogger of DAT instruments is now in production. DAT TinyLog, this is the name chosen by the operators via a survey on social media platforms and during the German exhibition too. It is high technology in 35 cm wide, 25 cm height and less than 6 cm thickness. Its monitor is 12”, colour touch screen.

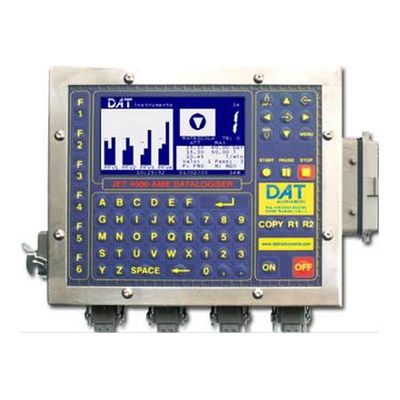

The JET 4000 AME / I datalogger can be used to record pressure, flow and volume values of 4 pumps or injectors during grouting work and it is also used for soil consolidation techniques at low pressure. In addition to this, it can automate and speed up the processes of mixture injections.

From the R&D Department in DAT instruments, here comes a new 18,5” touch screen datalogger. Versatile, resistant, expandable, perfect for every technology, easy to use and definitely fantastic. A real turning point for DAT instruments Research and Development Department; the new datalogger designed and realised by the Italian company was created according to the needs/demand of the Clients. The DAT WideLog project arose from the specific request of a horizontal drilling construction site were there was the necessity to record different parameters and to display them simultaneously on the screen. Here comes the creation of a Wide monitor and a lot of improvements.

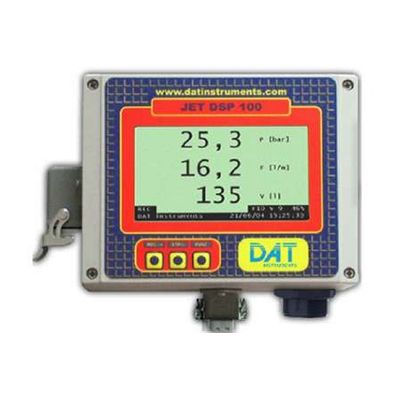

JET DSP 100 / IR (or/ IRT) datalogger is used to display, directly on a big back-lighted monitor, and to record, on internal memory, the parameters of a fluid during pumping: Instantaneous pressure ( bar ) Instantaneous flow rate ( liters/min ) Pumped fluid volume ( liters ) Data are measured using sensors installed on the pumping pipe.

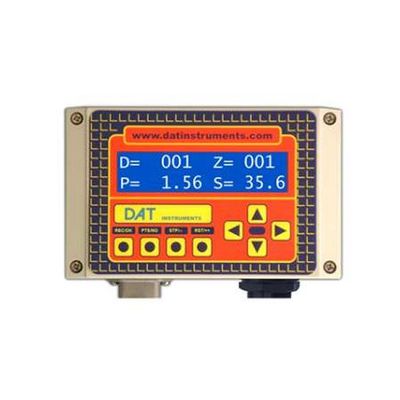

JET SDP / IB datalogger is a cheap and simple system to display and record parameters during drilling or MWD works and during cement orconcrete injections.
