Hydroplex products

Pumps

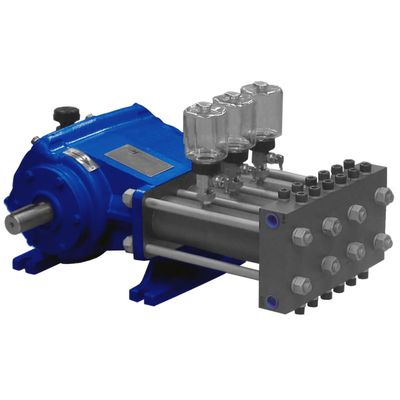

Model HP-350 - Pumps

Features: Pressure to 30,000 psi*, Durable and Compact, Splash or Pressurized Lubrication Systems, Easy Field Maintenance, High Output Efficiency, Corrosion Resistant Hardware.

Features: Pressure to 38,000 psi*, Internal Helical Gear Reduction, Durable and Compact, Splash or Pressurized Lubrication Systems, Easy Field Maintenance, High Output Efficiency, Corrosion Resistant Hardware

Valves

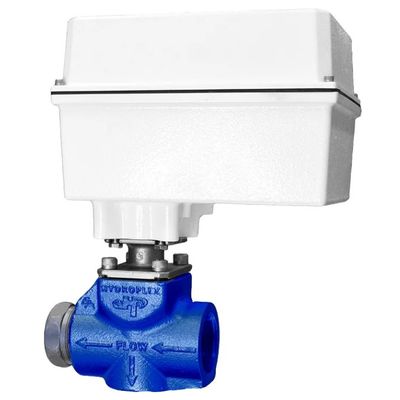

Model MiniMax - Throttling Valves

Hydroplex MiniMax is designed as quarter-turn, twin-disc throttling valves featuring two concentric discs that are diamond-polished, each with a pair of matching orifices. The configuration includes one fixed disc and another that rotates to modulate the flow path. This specialized trim is engineered for precise management of fluids and gases in demanding service conditions. The valve’s construction involves a minimal number of components prone to wear and achieves an ANSI class IV closure. These characteristics contribute to a robust design that simplifies fields servicing, extends operational lifespan, and lowers running expenses. Additionally, the valve’s adaptable design permits on-site modifications from manual to automated operation, even when the system is pressurized.

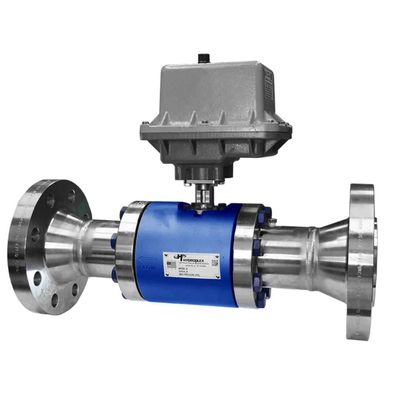

Model HydraMax Throttle - Valve

Hydroplex HydraMax series throttle valves are precision engineered to control high pressure and flow liquid and gas, water and gas injection, gas and condensate production, automated throttle valve applications, MOV choke points, separator dump valves, and more. HydraMax’s innovative, modular design has a replaceable downstream hub on some models which mean that the valve body is not sacrificed during normal service. Most HydraMax models allow for multiple stage pressure drops within one valve.

Accessories

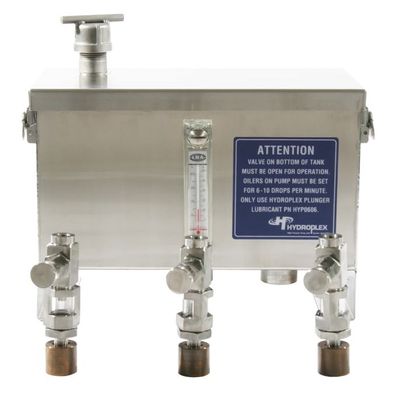

3-Gallon Plunger Lube Day Tank

Features: 316 SS construction, 3 gallon capacity for plunger lubricant, Easy topside access for cleanout, Includes 3 stainless steel adjustable oilers, Can be fitted with a manual or electric ball valve, Standard equipment on HP-550 thru HP-1050 methanol pumps
