In Process Instruments products

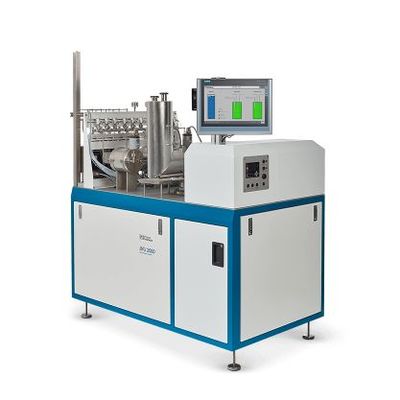

Process gas quadrupole mass spectrometer for fast automated online gas analysis in industry and research. Customizable configurations to the specific analytical needs of the application, Process gas valve battery with response time t90 < 300 ms, IPI QMS software connected with the PLC (process control systems) of the user; it features amongst others specially developed programs to monitore and control the converter process during steel production, Completely revised electronics and control system with auto start after power-off, Significantly more compact than the previous models (25% lighter and smaller) associated with lower maintenance requirements

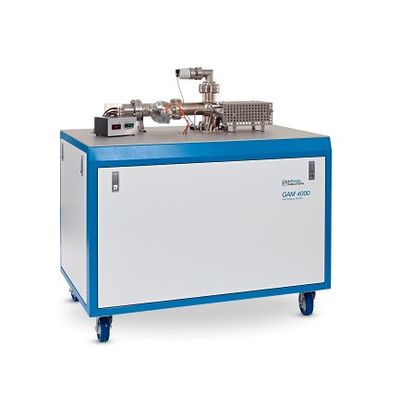

The GAM 4000 can be perfectly configured for the respective application because of its open design and the variety of modular assemblies. Thus, the system perfectly meets the requirements for continuous gas analysis in research, technology development and special applications in laboratory and process analytics. Versatile and individually adaptable for all customer-specific applications, IPI ProxiMass software suite to create user-defined routines for automatic calibrations and process gas analyses i.e., Various inlet systems for continuous gas analysis down to trace levels at low sample gas consumption, Application-based calibration routines with minimum consumption of calibration gases because of its high system stability, Connections using various hardware interfaces and third-party software and coupling with other analytical methods are possible, Process-safe operation through self-protection and event-based control mechanisms, also during emergency situations,

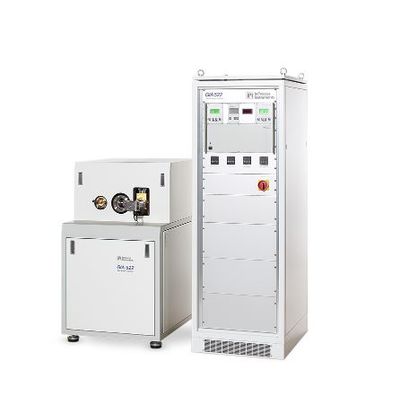

Quadrupole Mass Spectrometer for the determination of isotope ratios and impurity analysis of UF6, Allows for monitoring of the UF6 content and its composition in carrier gases such as HF, Isotope analysis of other corrosive gases with compatibility to the gas inlet system (stainless steel, LN2 cold trap)
