InterTest, Inc. products

iShot® Cameras

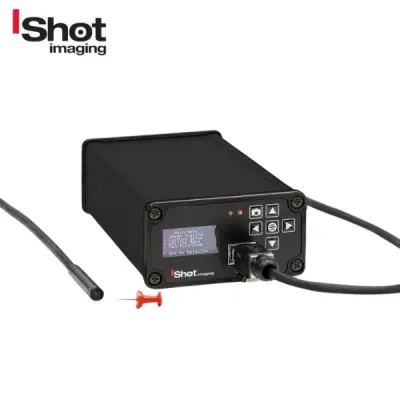

iShot - Model QN-HD - 7 mm Industrial Color HD Camera

The iShot QN-HD 7 mm HD micro camera replaces the Elmo QN 42H and its 7 mm Toshiba IK-SM43H equivalent. It is compatible with existing ELMO and Toshiba 7 mm diameter lenses and newly designed units. QN-HD is a 1080/60p micro high definition 7mm diameter color camera utilizing a 1/6" (1920 X 1080, 2 MP) CMOS sensor. High-speed digital/serial communication between the camera head and the camera control unit (CCU) provides responsive performance. Signal and power are each sent over separate twisted wire pairs, greatly simplifying cable construction. This transport design supports 15 m configurations, allowing the remote camera head to be located in hard-to-reach areas.

iShot Cameras - iShot Miniature Cameras

iShot - Model KTC-HMB7823-HWX Mini HD-SDI - Bullet Camera

The iShot Mini HD-SDI Bullet Camera is a compact, high-definition inspection camera engineered for capturing detailed video without necessitating extensive networking resources. This device integrates a 1/2.8-inch Sony EXMOR Progressive Scan CMOS sensor to provide 1080p resolution at 30fps. It supports various video outputs, including HD-SDI, EX-SDI, and CVBS, making it adaptable to different inspection environments. The camera is equipped with a 3.6mm fixed lens, digital day and night functionality, and 3D digital noise reduction for clear footage in various lighting conditions. Additional features include Digital Slow Shutter (DSS) technology to enhance low-light imaging, backlight compensation, and an On-Screen Display (OSD) menu for convenient configuration. The device is housed in an IP67-rated waterproof housing, making it suitable for harsh environments. Its small form factor of 23mm x 80mm and lightweight design of approximately 90 grams ensure easy deployment in confined spaces. The camera operates on a 12VDC power source and consumes a maximum of 190mA, enabling efficient energy use.

iShot - Model KTC-M230Q - iShot KTC-M230Q 1080P 23mm Bullet Camera

The KTC-M230Q is a 23mm diameter Full HD bullet camera equipped with a progressive scan SONY STARVIS CMOS sensor and multi-output capability, including AVI, TVI, CVI, and CVBS, ensuring compatibility with both legacy analog and new HD systems. It offers a maximum resolution of 1080p at 30fps and supports various enhancement features such as Wide Dynamic Range (WDR), 3D Digital Noise Reduction (DNR), and Defog, which can be adjusted via On-Screen Display (OSD) controls accessed through a UTC function. This camera supports automatic and manual white balance settings and has a minimum illumination requirement of 0.2 Lux. Other features include motion detection with four zones, 16 privacy mask zones, image rotation capabilities, and an IP67 rating for weather resistance. It operates within a temperature range of -10°C to +50°C with a relative humidity of 20-80% and has a compact form factor with dimensions of Φ23x54.8mm.

Retrieval Tools - iGrab Micro Retrieval Tools

iGrab - Micro Manual FOD Retrieval Tool Kit - 8 Piece Set

The iGrab™ Micro Manual FOD Retrieval Tool Kit is designed for Foreign Object Debris (FOD) retrieval during Foreign Object Search and Retrieval (FOSAR) operations. It includes grabbers varying in diameters from 1.4 mm to 3 mm, constructed from stainless steel, aircraft wire, and a plastic handle. The kit features a plunger-style retrieval tool handle that provides strong gripping power and a flexible stainless steel body, enabling navigation through narrow passages. These tools are compatible with video probes, enhancing their application in visual inspections. Suitable for FME technicians, the kit aids in minimizing downtime in production environments, providing immediate and future retrieval solutions.

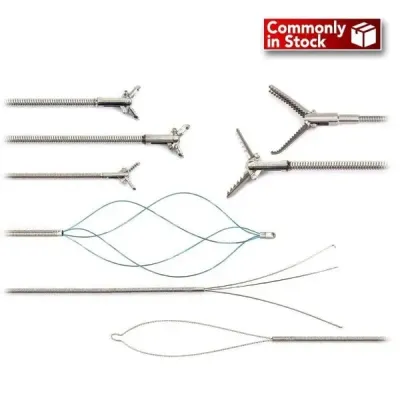

iGrab - Micro Alligator FOD Retrieval Tools for Inaccessible Areas

The iGrab™ Micro Alligator FOD Retrieval Tools are designed to safely remove foreign objects from areas that are hard to reach. Constructed from stainless steel, these tools have outer diameters of 1.4mm, 2.3mm, and 3mm, making them suitable for small, twisting passages. The iGrab™ 1.4mm and 3mm tools come in lengths of 10 and 20 feet, while the 2.3mm tool is available in a 7.5-foot length. They feature a plunger-style handle for precise control over the tool’s opening and closing mechanisms. This prevents damage during retrieval operations and ensures efficient removal of foreign materials.
