Move Solutions products

The Deck device is a wireless sensor that measures the dynamic amplitude of the displacement with an accuracy of 0.01 mm and the vibration frequency (through an FFT algorithm) of any structure on which it is applied. On each sensor, a threshold can be set remotely via the Move Cloud Platform. Each sensor continuously samples the oscillation amplitude and, if this threshold is exceeded, then the sensor records and transmits the 10 seconds before and the 20 seconds after the event. It is full wireless, and the battery can last for eight years.

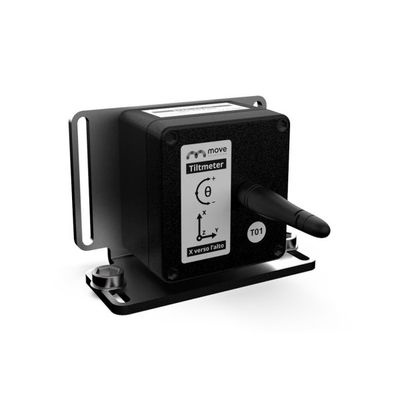

The Wireless Triaxial Tiltmeter measures the inclination and temperature of the point where it is installed relative to the gravitational axis. By installing a system composed of these sensors it is possible to reconstruct the deformation of the structure. All Tiltmeters are battery powered, they use LoRaWAN wireless transmission, and they can be perfectly synchronized with each other, making them perfect for static load tests. The acquisition methods can be set by the user through the Cloud Platform provided by Move Solutions™.

Tilt Beam sensors consist of aluminium metal bars of 1, 2 or 3 meters long on which is mounted a Wireless Tiltmeter. They are typically installed in a series so that the end of a bar coincides with the beginning of the next until it covers the required distance. The differential movements of the structure cause a different rotation of the bars and this shows the movements or differential settlements of the structure to be monitored. Installation is quick and easy without the use of wiring. As all Move Solutions` sensors, they are wireless devices and use the LoRaWAN communication protocol to send data to the Gateway.

The Move Accelerometer SHM can measure the acceleration of the point where it is installed, on the three axes, with high resolution. All of these Accelerometers SHM can be perfectly synchronised with each other. Thanks to this feature it is possible to measure the Vibration Frequencies and carry out a Modal Analysis of the structure. Like other devices, it is full wireless, and the battery lasts for years, in relation to the transmission frequency (timed and/or by threshold exceeding). The move SHM Accelerometer also integrates a temperature sensor inside.

Our Single Channel Node is a wireless data logger that makes geotechnical probes suited for LoRaWAN wireless communication. Each node supports one technical probe and the probe`s internal NTC (when present). The Single Channel Node can be configured on our Move Cloud Platform: you can set different parameters remotely and monitor the data collected at any time. This new Node comes with increased battery life, a wider range of supported probes and a new accelerometer-triggered acquisition mode.
