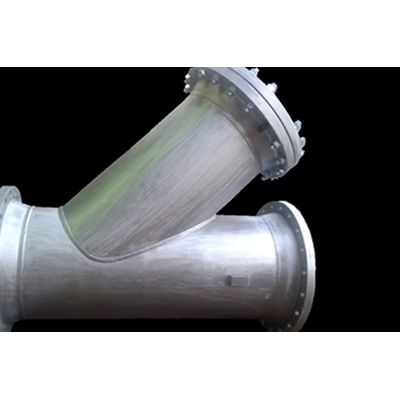

Y Strainer take their name from their configuration. are cast in sizes ¼" – 24" with Threaded, Socket Weld or Flanged End connections. Strainer are your most economical choice for large debris removal. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacuum conditions. Y-Strainer has the advantage of being able to be installed in either a horizontal or vertical position. However, in both cases, the screening element or "leg" must be on the "downside" of the strainer body so that entrapped solids can be properly collected and held for disposal

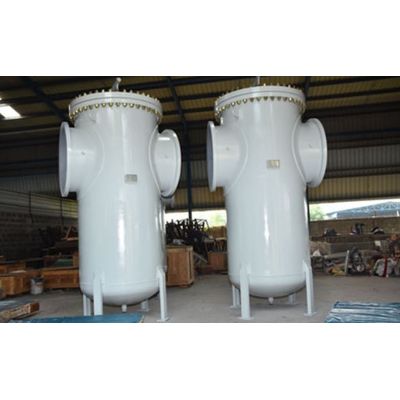

Basket Strainers feature top removal of the screen. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal. They are intended for applications where large amounts of solids particulate are expected and where the clean-out will be frequent. For easily flushable solids, a modified cone bottom basket can be tilted with automatic or manual blow-down through drain port. This will allow clean-out without removal of the screen, and without interrupting the flow process.

Duplex Strainers are designed for applications where flow cannot be shut down to service the strainer screen. Change over is accomplished by use of butterfly valves.They are very economical because they are fabricated to your specific requirements and with your choice of valves.This arrangement provides a bubble-tight shut off between basket chambers, essential for use in negative head pump suction systems. Read more about Duplex Strainers. They are very economical because they are fabricated to your specific requirements and with your choice of valves. Check out our full line of strainers or for more information contact us right now.

Procedyne Tee strainers is a custom fabricated compound strainer designed to remove foreign particles from pipeline.Tee Type Strainers are a low cost solution to large nominal bore straining requirements. They can be mounted into vertical or horizontal piping and can be configured for right-angled applications. Tee strainers are most commonly supplied with a range of graded filtration levels (fine to coarse or vice-versa) to ensure that the system is running at the required cleanliness level when met with full load. Tee strainers feature either bolted cover or quick opening covers for application suitability. Tee strainers are used where a compact accessible strainers is needed for protection of pumps, valves and similar equipment. Check out our full line of strainers or for more information contact us right now.

Procedyne Engineers offers replacement screens and baskets and temporary strainers not only for our own products but for those of our competitors as well. Basket, Cone, Plate, Reverse Flow and many different engineering designs are available. We specialize in supplying standard replacement strainer screens and baskets as well as custom engineered designs or competitor units. Often a screen or basket failure could mean a wrong unit is being used. Our knowledgeable staff will ask the right questions to ensure the correct replacements are being supplied. Provide us with a drawing and we will design and supply to your requirements. Check out our full line of strainers or for more information contact us right now.
