Win Equipments products

Compressed Air and Water Cooling System

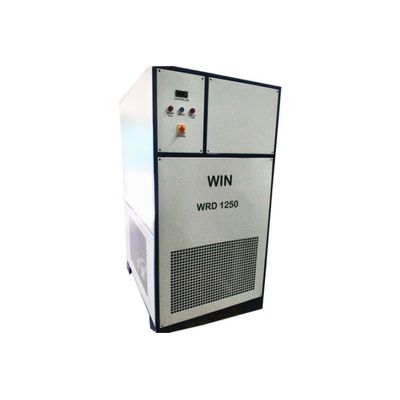

Win - Refrigerated Air Dryers

Air contains contaminants like solid (dust particles), liquid (moisture) and oil which contaminate the compressed air. When this contaminated compressed air is used for various applications, it may cause failures of pneumatic valves, instruments, etc which results in the downtime of whole system.

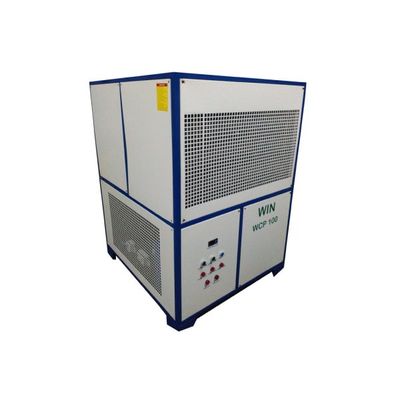

Win - Industrial Chillers

The Heat Exchnager is of BPHE and Tube in Tube, A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool air or equipment as required. As a necessary byproduct, refrigeration creates waste heat that must be exhausted to ambient or, for greater efficiency, recovered for heating purposes. Concerns in design and selection of chillers include performance, efficiency, maintenance, and product life cycle environmental impact

Win - Cooling Towers

A cooling tower is a heat rejection device, which extracts waste heat to the atmosphere though the cooling of a water stream to a lower temperature. The type of heat rejection in a cooling tower is termed "evaporative" in that it allows a small portion of the water being cooled to evaporate into a moving air stream to provide significant cooling to the rest of that water stream. The heat from the water stream transferred to the air stream raises the air`s temperature and its relative humidity to 100%, and this air is discharged to the atmosphere. The generic term "cooling tower" is used to describe both direct (open circuit) and indirect (closed circuit) heat rejection equipment. While most think of a "cooling tower" as an open direct contact heat rejection device, the indirect cooling tower, sometimes referred to as a "closed circuit cooling tower" is nonetheless also a cooling tower.

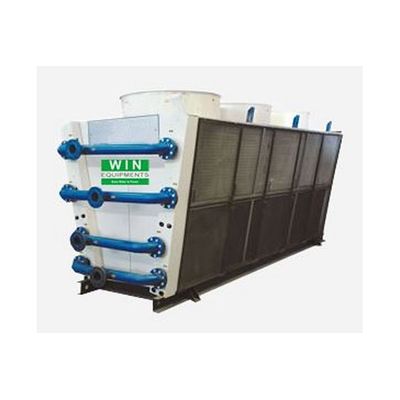

Win - Coil Cooling Tower

Coil Cooling Tower is an equipment which is used to cool and maintain the temperature of process hot water at a particular level. This operates on the principle of heat transfer by a heat exchanger with extended fins. The fan is deiven by an Electric Motor. Applying dry cooling means saving water. Dry Cooling Tower is mounted on a heavy duty channel base frame. Non corrosive fibre glass / GI panels are used for enclosure. Aero dynamically balanced high efficiency axial flow fans with low noise are used. The motors are IP 55 class with extended SS shaft. The low speed of the motor minimises noise and increases efficiency. Motors are specially designed to withstand moisture, rain and dust. The hot water from the diesel engine is sent to the inlet of the Dry Cooling Tower. This hot water is cooled and cold water from the outlet of the cooling tower is connected to a pump which pumps the water to the diesel engine (or any other load) to pick up the heat from the generator.

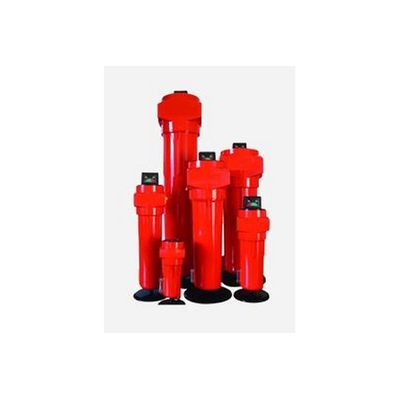

Win - Compressed Air Filters

Compressed air frequently contains dust, oil, rust, moisture and other harmful substances, and therefore requires filtration. In the first stage of filtration, the compressed air passes through a tube-shaped mesh filter, which creates a coalescence effect. Here bigger particles are adsorbed on the filter and the water will condense into larger droplets, which can then pass into the separation chamber. The compressed air is slowed down, which makes the particles condense on a honeycomb-like pad, allowing the water droplets to travel to the bottom of the drainage system and through an Manual or automatic or electric drain valve to the discharge. In the first filtration stage more than 95% of the water droplets, oil and large particles are removed. In the second filtration stage the air is passed through fiber made of cotton, generating thousands of small vortices and accelerating the air.

Win - Automatic Drain Valves

Automatic Drain Valves are at the air system without losing excessive compressed air without shutting down the crucial part of the compressed air system. Condensate drain valves remove condensate. The entrainment condensate along with airflow in compressed air system to end use application are extremely harmful, if system not drained regularly. Even the smallest compressed air system can produce large quantities of condensate whicj contains oil & water, Removing condensate from any compressed air system is very much important. An Automatic drain valve is the right solution to elimate this effect. Win offers wide range of Automatic condensate drain

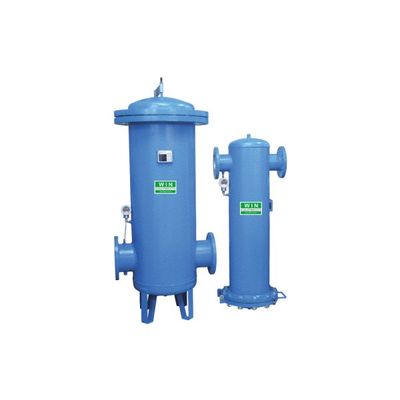

Win - Moisture Separators

We have with us a range of moisture separators that are designed to use for removal of extra water or any fluid carried by the gas. Manufactured using premium quality raw material, our range is high on durability, efficiency and can sustain even in the harshest surroundings. We offer our clients a wide gamut of moisture separators that are used for various industrial purposes. These moisture separators are designed to act as moisture separators cum filters for gas and compressed air. The structure of our range of air moisture separator consists of a completely sealed high performing cyclonic type mechanical moisture separator cum filter. High on durability and efficiency, these moisture separators can sustain even the harshest surroundings.

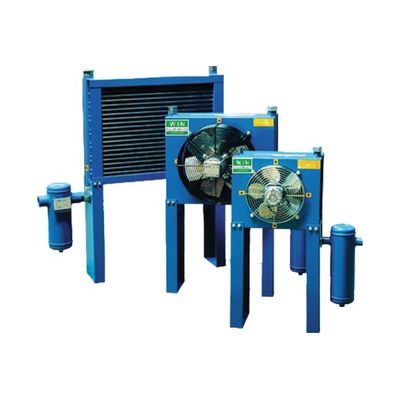

Win - Air Cooled After Coolers

Win - Air Receivers

We are the leading manufacture of high quality Coolers to our clien tèle. The coolers provide two necessary functions that provide the conditioning of compressed air. Firstly it reduces the temperature of the air to a safe operating range while secondly, removing the moisture condensed during the cooling process. Air receiver is a vessel which contains air at high pressure for use in service industries. We do manufacture Air Receiver with different capacities and pressure rating. Generally our product is made out of IS2002, SA516Gr70, AISI 304, AISI 316 materials.

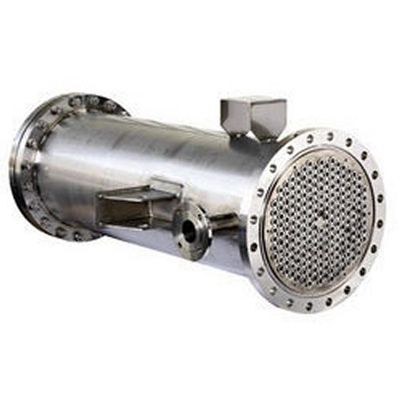

Win - Heat Exchangers

We are engaged in offering a comprehensive range of Heat Exchangers that is mainly used for transferring heat. These are offered in varied sizes, diameter and thickness, and are appreciated for their superior thermal conductivity, corrosion resistance and high tensile strength.
