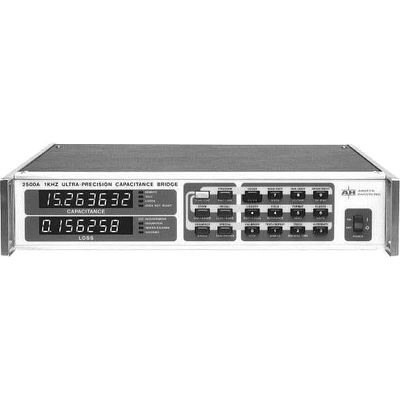

Andeen-Hagerling - Model AH 2500A -1 kHz AutomaticCapacitive Bridge
Andeen-Hagerling's Model 2500A sets a high benchmark in capacitance and loss measurement with its precision and versatility, designed with a unique ratio transformer and a temperature-controlled fused silica standard for exceptional accuracy. Operating at one kilohertz, the Model 2500A allows measurements independent of test frequency, catering to medium and high-impedance ranges. It includes various interfaces like RS-232 and IEEE-488, supporting automated, user-friendly operations with English language commands. Notably, it features calibration functions against both internal and external standards, incorporating a passcode system for security. The Model 2500A can process DC Bias and corrects for cable length impacts on measurement accuracy. With a robust build adhering to UL, IEC, and FCC standards, coupled with a three-year warranty, it is well-equipped for rigorous industrial and laboratory use. Its capability extends beyond calibration, exploring applications in various fields requiring precision capacitive sensor integration.
The AH 2500A offers unparalleled stability, resolution and accuracy in a capacitance/loss1 bridge (whether manual or automatic). Its numerous state of the art features make it an exceptionally user friendly instrument. The precision and ease of use of the 2500A are creating new applications in science, engineering and production in a range of industries.
- Accuracy of 5 ppm (or 3 ppm with Option E)
- Stability better than 1 ppm/year (or 0.5 ppm/year with Option E)
- Resolution of 0.5 attofarad (.000 0005 pF) and 0.15 ppm (or 0.5 aF and 0.07 ppm with Option E)
- Temperature Coefficient of 0.03 ppm/°C (0.01 ppm/°C with Option E)
- Measures extremely low loss down to a dissipation factor of 1.5x10-8 tan delta, a conductance of 3x10-7 nanosiemens or a resistance up to 1.7x106 gigohms
- Full precision measurements in less than 0.5 second and repeated measurements on the same sample in less than 40 milliseconds
- Both capacitance and loss ranges cover negative values to allow for unusual samples or three terminal networks
- Three terminal BNC connections minimize connector costs and number of cables
- Commutation (test signal reversal) to minimize external power line or other periodic signal pickup
- Autoranging
- IEEE-488 and RS-232 interfaces included; external device can serve as controller or logger
- Programmable features can eliminate the need for an external controller
- Full or abbreviated English language commands and error messages
- Large, variable brightness, eight digit display of capacitance and loss
- Deviation measurements of capacitance, loss or both
- Zero correction of test fixture capacitance and loss
- External DC bias up to ±100 volts
- External trigger capability
- Automatic internal calibration
- NIST traceable calibration
- Self test diagnostics on power-up
- Three year warranty
