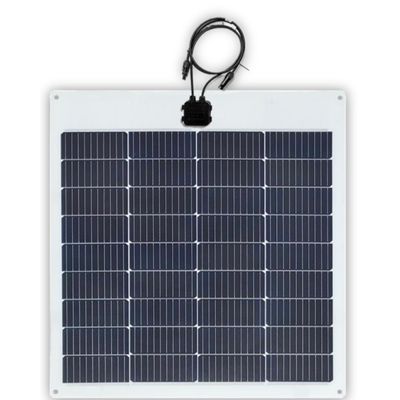

Sonali Solar - 100 Flexible Panel 36 Cell
All Manufactured modules are tested 100% by EL (Electroluminescence) during the Production Process & ree from micro cracks. ur high-performance modules are highly efficient, eliable and provide optimal output. he company manufactures solar modules in ompliance with global standard including IEC 61215, 1730-1, 61730-2, 61701, UL 1703, UL 61730, ISO 001:2008 & ISO 14001:2004 & 18001:2007.
High Efficiency
High Module efficiency is obtaining top performance even in diffused light conditions. We are leaders in providing our customers with maximum sunlight conversion.
Application Possibilities
Residential and Commercial rooftops, Car ports, Solar Farming, Balconies, Awnings, Street lights, Fences, and Canopies.
- Module Dimensions: 970 X 670 X 2.5 mm / 38.19 X 26.38 X 0.1 inch
- Weight: 4 kgs / 8.82lbs
- Cell Size (Monocrystalline): 156x90 mm / 6.14x3.54 in
- No Of Cell: 36 (9 X 4)
- Junction Box: IP65 with Bypass diodes
- Solar Cable Length (4mm²): 600mm (23.62inch)
- Connectors: MC4 compatible / IP67
- Fiberglass Board: 1.0mm (0.4in)
- Encapsulate: EVA
- Back Cover: Composite
Temperature Coefficient
- Coefficient of Current: +0.035% /˚C
- Coefficient of Voltage: -0.28% /˚C
- Coefficient of Power: -0.38% /˚C
Tested Operating Conditions
- Temperature Cycling Range: -40˚C to 85˚C
- Humidity Freeze, Damp Heat: 85% RH
Product Warranty
- Product Warranty: 5 Years
- Performance Warranty: 10 Year
- Model: Flexible PV-SS100W18V
- Nominal Maximum Power (Pmax/W): 100
- Optimum Operating Voltage (Vmp/V): 18.57
- Optimum Operating Current (Imp/A): 5.39
- Open Circuit Voltage (Voc/V): 22.82
- Short Circuit Current (Isc/A): 5.71
Measurement Power Tolerance on Power 0 / +%
Under Standard Test Conditions (STC) of irradiance of 1000W/m2
Maximum System Voltage: 1000v IEC/UL
Normal Operating cell Temperature (NOCT) of irradiance of 800W/m2, 43± 2° C
Spectrum AM 1.5 and cell temperature of 25 ˚C
