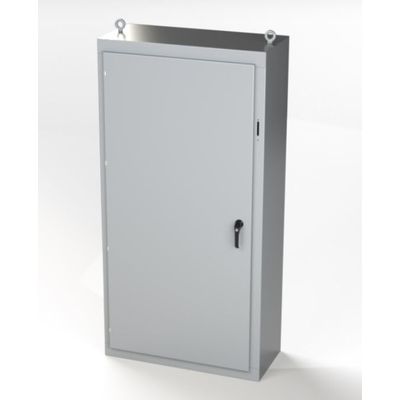

Model SCE-N68XM2818 -1DR Enc. Both sides Solid w/ Disc.

SHARE

Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Disconnect switch (or circuit breaker) and operating mechanisms are not furnished with enclosure. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Most popular related searches

Part Number: SCE-N68XM2818

Description: 1DR Enc. Both sides Solid w/ Disc.

Height: 68.00"

Width: 28.25"

Depth: 18.00"

Price Code: A2

List Price: $1,550.29

Catalog Page: 999

Est. Ship Weight: 268.00 lbs

  • Both sides solid.
  • Provisions for flange mount disconnect.
  • .104 in carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Body stiffeners in large enclosures for extra rigidity.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Concealed hinges.
  • 3-point latching mechanism.
  • End of latch rods have ramp shoes for easier door closing.
  • Panel supports.
  • Pour-in-place oil & water resistant gasket.
  • Optional panels mount to collar studs.
  • Ground stud on door and body.
  • Provisions for light kit.
  • Holes plug provided to seal holes in bottom of enclosure.
  • Black zinc die cast coinproof/padlocking handle on door.
  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66
