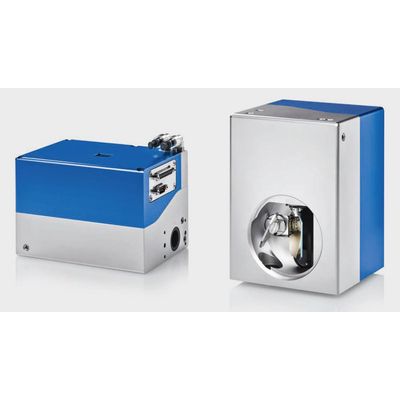

RAYLASE - Model SUPERSCAN IIE -2-Axis Deflection Unit

The innovative thermal management and modular design make the SUPERSCAN IIE the perfect deflection unit for demanding laser applications. The “enhanced” option offers a 50 % better long-term drift performance. Long-term drift can even be further minimized by an additional water tempering.

Most popular related searches

water additive

INTERFACES

The deflection units are compatible to the XY2-100 standard protocol. They can be digitally controlled by a control card, such as the SP-ICE-1 PCIe PRO.

MIRRORS AND OBJECTIVES

Scan mirrors and objectives with optimized mounts are available for all typical laser types, wavelengths, power densities, focal lengths and working fields. Customer specific configurations are also possible.

TYPICAL APPLICATIONS

The SUPERSCAN IIE is ideally suited for these applications:

Marking
Ablation
Welding
ITO Structuring
Ag Patterning

Lowest drift values through twin-shell design
Suitable for high power applications
Water tempering and air flushing options
“enhanced“ option for 50 % improved long-term drift
Available apertures (mm): 7, 10, 12, 15, 20, 30
