Typical applications include liquid levels, HVAC filter media, storage silos, underground tanks, variable speed drives, analog valves and all types of transfer tank applications. DistaView also produces a self contained, stand alone bubbler that provides a 4-20mA signal into 2Point for control of slurry, caustic, high temperature, foaming and very shallow level applications.

The sensor input is isolated so you can include data loggers and other devices in the control network. Loop power is also available to the sensor if required. 2Point is reliable, flexible, very easy to set up and more importantly provides you all the information at a glance. DistaView believes the solution to level control is easy to see.

Typical Control Options:

• Empty the Tank and a High Alarm (sump applications)
• Fill the Tank and a High Alarm (make up applications)
• 2 High Alarms
• High and Low Alarm or Pump On/Off
• Empty the Tank and a Low Alarm
• Fill Tank and Low Alarm
• 2 Low Alarms

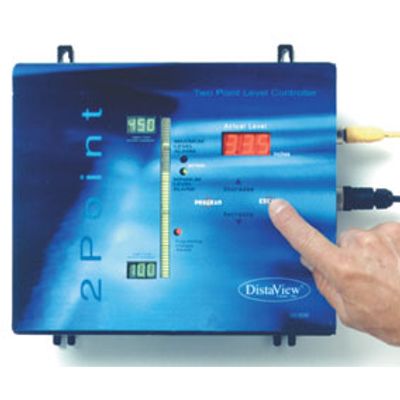

• Vertical display bar shows the actual level, two set points, or differential    sump or makeup range
• Accepts all types of 4-20 mA transducers; loop power available from 2Point terminal
• Security lock-out by DIP switch or remote
• Two Form-A relays at 10.0 amps 125 VAC
• 24 VDC unregulated or 24 VAC power input
• 8"x10"x3" NEMA 4 enclosure
• Display bar is not 0-100% of sensor range. You can zoom in to display the critical cross-section of your installation.
• Optional: a pressure, vacuum or differential sensor can be mounted directly on the circuit board, rather than using a separate sensor.
• Isolated 4-20mA input to allow 2Point to be inserted into network.
