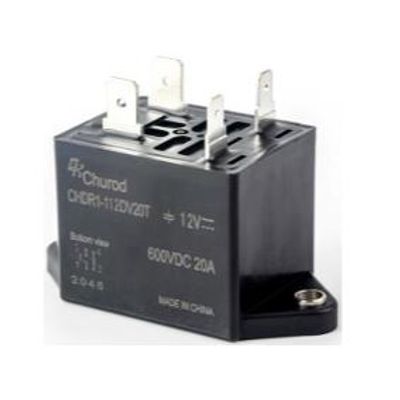

Model CHDR1-20 -20A DC Relay

Outline dimension: PCB: 38mmx29.8mmx33.6mm. TAB: 61.1 mmx29.8mmx32mm 1A (SPDM) , GAP > 3.0mm. IEC61810, IEC60664. RoHS, REACH SvHC compliance Epoxy resin seal, Environmental protection category RTll 20A 8S°C carrying capacity PCB mounting type or TAB mounting type.

Most popular related searches

PCB

REACH compliance

SVHC

RoHS compliance

RoHS

EV
Precharge circuit control of inverter
Industrial DC control unit
AGV

Contact form : 1A(SPDM)
Contact material : AnSn02
Initial voltage drop : <60 mV at 20 A
Rated current {Resistive Load) : 20 A (@2.5mm2 PCB or #250 TAB)
Rated switching voltage : 600 Vd.c
Minimum applicable load : 48Vd.c. 100mA
Max switching voltage : 600 Vd.c.
Rated switching current : 20A (600Vd.c.)
Electrical life (Resistive Load) : DV: 1000 # (600 Vd.c. 20 A) 3000 ft (500 Vd.c. 20 A) DH: 6000 ft (72Vd.c. 20 A)
Current tolerance : 20A, continuous; 30A, 1.0 h; 40A,20 min; 80A. 30 s; 120A, 10 s; 200A, 0.6 s;
Mechanical life : 200000ft, ON:OFF: 0.2s: 0.2s

Model CHDR1-20 -20A DC Relay

Applications

Contact Parameters
