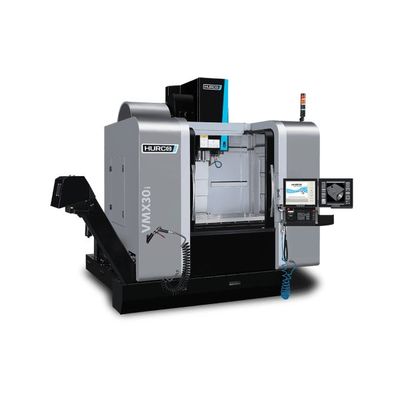

Hurco - Model VMX30i -3-Axis CNC Machine
Our signature line of VMX machining centres takes CNC machining to the next level. These machines deliver high-precision capabilities to any machining application. Whether you are doing batch production, one-off’s, or die/mould work, the VMXi CNC mills will make you more productive and your machine shop more profitable.
Most popular related searches
TRAVELS & CAPACITY
- X, Y, Z Axis Travel : 762 x 508 x 610 mm
- T-Slot Size : 5 x 18 x 100 mm
- Max. Weight on Table : 1,500 kg
- Table Size : 1,020 x 508 mm
- Spindle Nose to Table : 152 mm
SPINDLE
- Max. Spindle Speed : 12000 rpm
- Spindle Power (peak - 1 min) : 13.4 kW
- Spindle Torque (peak - 1 min) : 214 Nm @ 600 rpm
TOOL CHANGER
- Tool Type : CAT or BT 40
- Max Tool Diameter : 80 mm
- Max Tool Length : 300 mm
- Max Tool Weight : 7 kg
FEEDRATES
- Rapid Traverse X,Y,Z Axis : 38, 38, 32 m/min
- Max Programmable Feedrate : 32 m/min
SIZE
- Machine Weight : 4,750 kg
- Machine Type : 3-Axis Machining Centre
