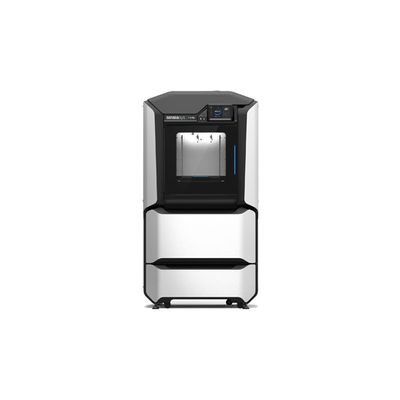

Altem - Model Stratasys F170 -3D Printer
Reliable. Repeatable. Exceptional. An Office-Friendly FDM Technology-Based 3D Printer; The Stratasys F170 is a part of the world leading F123 Series based on Fused Deposition modelling technology (FDM), invented by Stratasys. The Stratasys F170 FDM 3D Printing demands less knowledge and experience, while meeting even the most advanced rapid prototyping needs. Based on the most widely used 3D Printing technology, this affordable Stratasys F170 Industrial 3D printer is perfect for any shared workspace and yet powerful enough to compete in the most competitive business environments. With FDM F170, a designer can create an idea, and test it the same day.
The F170 3D Printing machine empowers designers to generate and test their ideas within the same day. This FDM 3D Printer offers a wide range of 3D Printer filaments, including PLA, ABS-M30, ASA, ABS-CF10 and TPU 92A. The integration of ABS-CF10, which combines the advantages of Carbon Fiber filament, positions the F170 as an exceptional carbon fiber 3D Printer based on fused deposition modelling 3D Printing technology (also refer to the F123CR Series), all at a most competitive price. The inclusion of TPU Filament enables elastomer 3D Printing. Enabled with all these 3D Printing filaments options, users can address wide range of 3D Printing applications and significantly reduce lead times and costs, enhance product quality, and expedite time-to-market.
The Stratasys F170 is a milestone in the world of 3D printing. It is easy to operate and maintain for all levels of experience. And it’s adept at every prototyping stage, from concept verification to design validation to functional performance. It is a fully featured prototyping tool, with the capability to print with Engineering thermoplastic materials like ABS, ASA, PLA, TPU-92A, and ABS-CF10. It offers two material bays, one for the printing model material and one for the support material.
Smoother workflow with Quieter workspace:
The Stratasys F170 Industrial 3D Printer is designed to offer maximum ease-of-use with plug and play functionality, Fast and easy 3D Printer filaments change-out plus Auto-calibration.
Smarter 3D Printing Software
Every 3D printer in the F123 range is bundled with GrabCAD Print, Stratasys’ dedicated 3D Printing Software tool for managing your printer, monitoring its 3D Printer materials supply, and sharing its resources across your network.
Versatility and Performance
The Stratasys F170 Industrial 3D printer with fdm 3D Printing technology, lets you print everything from fast, low-cost concept models to durable assemblies.
More Speed and Productivity
The F170 3D printers give designers, engineers, and educators access to affordable, industrial 3D printing enabling them to address wide range of 3D Printing Applications.
Maximum Build Size: 254 x 254 x 254 mm (10 x 10 x 10 in.)
Materials: ABS, ASA, PLA, TPU-92A, ABS-CF10 and QSR support material
System Size & Weight: 1,626 mm x 864 mm x 711 mm (64 x 34 x 28 in.), 227 kg with Consumables
Accuracy: Parts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm (.002 in/in), whichever is greater
Layer Thickness: 0.127mm, .178mm, .254mm, .330mm
Network Connectivity Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
Material Delivery: 2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit
Software: GrabCAD Print
