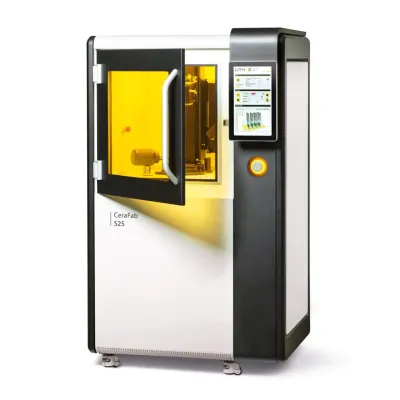

Lithoz CeraFab - Model S25 -3D Printer for Microstructures

SHARE

The CeraFab System S25 is a specialized 3D printer designed specifically for creating microstructures with precision and accuracy. Utilizing LCM technology, this printer stands out for its compact build platform, offering a lateral resolution of 25 µm, which caters to the finest detail-oriented requirements. Although the S25 model features a smaller build area than its counterparts, it excels in producing precise and complex structures. Designed to push the boundaries of LCM technology, it achieves up to 150 layers per hour. Ideal for applications where microstructure precision supersedes the need for high-volume production, the CeraFab S25 integrates seamlessly with IIoT and Industry 4.0 systems, ensuring comprehensive data management and process monitoring. Its accessibility to various materials and software upgrades makes it highly adaptable, supporting endeavors in research, medical, and industrial fields aiming for cutting-edge development.

Most popular related searches
3D printer
process monitoring
LC-MS

The CeraFab S25 printer - engineered for microstructures without compromise.



In the series of CeraFab System 3D printers, the S25 takes on the role of the detail-oriented specialist. Thanks to its slightly smaller build platform, the LCM technology is optimized for the highest possible levels of perfection and accuracy.

Compact platform for extreme accuracy

Sometimes less is more - and this includes Lithoz's 3D printers using LCM technology. The CeraFab S25 has the most compact build platform of all the System printers, but reaches unique dimensions in terms of exposure accuracy.

  • Lateral resolution of 25 µm
  • The most precise LCM printer
  • Compact build platform, maximum speeds
Designed for microstructures

The CeraFab System S25 enters the spotlight when it comes to achieving goals other than high quantities or maximum economic efficiency. Its unique mission is to explore the capabilities of LCM technology to the utmost in terms of microstructure precision and complexity.

  • For the finest of microstructures
  • All software upgrades available
  • Unlimited choice of materials
In the CeraFab System S25, our LCM technology has been designed to print at the most detailed level of accuracy.
  • The most compact LCM build platform
  • Highest possible level of precision
  • Perfect for microstructures
  • Lateral resolution : 25 µm
  • Build speed : up to 150 layers per hour
  • Layer thickness : 10 – 100 µm
  • Building envelope (x / y / z) : 64 x 40 x 320 mm
  • Dimensions (L x W x H) : 1.05 x 0.85 x 1.78 m
