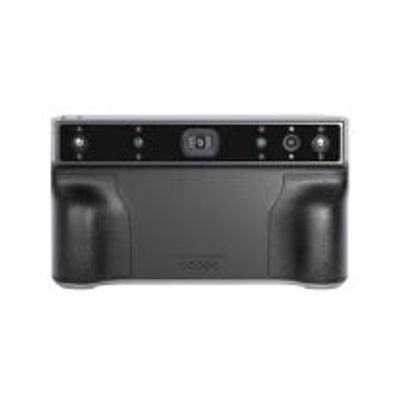

Revopoint - Model MIRACO -3D Scanner
Freely switch between Far-mode and Near-mode mid-scan. Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.
Switch mid-scan between capturing fine detail with a near-mode accuracy of up to 0.05 mm or capturing large areas with a far-mode accuracy of up to 0.3 mm.
- Up to 0.02 mm Precision
- 0.05 mm Accuracy
- Screen Size
- Adjust 180°
See your scans with crystal clarity on MIRACO`s 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.
Aerospace
Quickly scan aircraft parts to check for wear and fatigue or to create replacements.
Automobiles
Capture every last part of a vehicle without time-consuming manual measurements for repair, reproduction, prototyping, or quality control.
3D Animation
Capture full-body scans in under 60 seconds or highly detailed face scans using MIRACO’s Far and Near modes.
Preservation
Digitize historical items with photo-realistic color details for preservation or restoration without direct contact.
Product Name: Revopoint MIRACO
Single-frame Accuracy, up to: 0.05 mm
Single Capture Range @nearest Distance: 28 x 53 @100 mm
Two Capture Modes: Single-shot Mode , Continuous Capture Mode
Minimum Scan Volume: 10 x 10 x 10 mm
Working Distance: 100 - 1000 mm
Auxiliary Lighting: Infrared Fill Lights, Flash LEDs
Storage: 256 GB eMMC
Memory (RAM): 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro)
Scanner Weight: 750 g
Battery Capacity: Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning
Tracking Methods: Feature , Marker
Connector Type: USB Type-C
Compatible Systems: Windows 10/11, macOS
Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.
Output Formats: PLY, OBJ, and STL
Technology: Quad-camera Infrared Structured Light
Fused Point Distance: 0.05 mm
Single Capture Range @furthest Distance: 975 x 775 @1000 mm
Scanning Speed,up to: 15 fps
Maxmium Scan Volume: 4000 x 4000 x 4000 mm
Screen: 6” 2k AMOLED Touch Screen
3D Light Source: Class 1 Infrared Light
Position Sensors: 9-axis IMU
RGB Camera Resolution,up to: 48 Megapixels
Dimensions(L x W x H): 200 x 50 x 110 mm
CPU: 8-core CPU,2.4 GHz
Protection Rating: IP45
Wi-Fi Type: Wi-Fi 6
Operating System: Native Android System
Scanning Environment: Indoors and Outdoors
3D Printing Compatible: Yes
