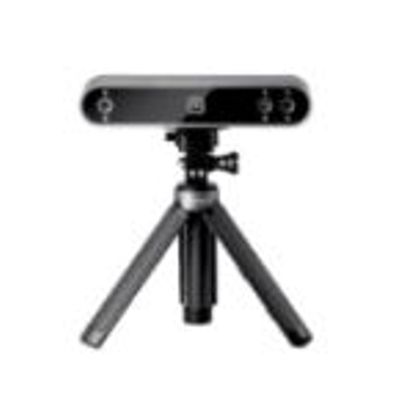

Revopoint - Model POP 3 -3D Scanner

Time-Saving Accuracy
Eliminate the need to manually measure objects by consistently and efficiently capturing accurate and detailed 3D models at fast scanning speeds between 12 to 18fps with a single-frame precision of up to 0.05mm and 0.05mm point distance.

Enhanced Marker Tracking
Experience accurate, reliable, and efficient marker tracking scans and scanner calibration thanks to the four powerful infrared LEDs enhancing marker visibility.

Precision in Motion
Enjoy a seamless tracking and frame stitching experience with POP 3’s 9-axis IMU (Inertial Measurement Unit) continuously measuring the scanner’s movement. At the same time, an advanced algorithm eliminates faulty frames caused by sudden movement or shaking.

Single Capture Range
225mm x 125mm

Scanning Speed
12fps - 18fps

Touch Button
Controls

Connection Port
Type-C

High Fidelity Color Scans
Improved color scanning with the RGB camera’s 30% larger aperture letting more light reach the sensor. And dual white LEDs illuminate and remove shadows from the scanned object, so POP 3 can capture more vibrant and lifelike full-color 3D scans.

Streamlined Controls
POP 3’s new design is built around optimizing the scanning experience. With the addition of three touch-sensitive buttons to Start/Pause scans and adjust the depth camera`s exposure on the fly.

Energized Connectivity
Powered by Wi-Fi 6, POP 3 can transfer data nearly three times faster than POP 2 for lower latency and smoother mobile scanning. And a new Type-C USB connector for compatibility with your other cables and faster to set up.

Product Name: Revopoint POP 3
Technology: Dual Camera Infrared Light
Single-frame Precision: Up to 0.05mm
Single-frame Accuracy: Up to 0.1mm
Single Capture Range: 225mm x 125mm
Working Distance: 150mm ~ 400mm
Minimum Scan Volume: 20mm x 20mm x 20mm
Scanning Speed: 12 - 18fps
IMU: 9-axis
Light Source: Class 1 Infrared Light
Alignment Modes: Feature/Marker
Color Scanning: Yes
Output Formats: PLY, OBJ, and STL
Point Distance/Resolution: Minimum 0.05mm
Special Object Scanning: Use scanning spray and the correct scanning mode for transparent, dark, or highly reflective objects.
Scanning Environment: Indoors and Outdoors
Scanner Weight: 190g
Scanner Dimensions: 153mm x 29mm x 45mm
3D Printing Compatible: Yes
Compatible OS: Windows 10/11 (64-bit), Android, iOS, macOS
Auxiliary Lighting: 4 IR LEDs / 2 White LEDs
Lumens: White LEDs: 110 ~ 130
Color Temperature: White LEDs: 6000k ~ 6500K
Connection Modes: Type-C USB 3.0
External Controls: 3 Touch-sensitive Buttons
Wi-Fi: 6
