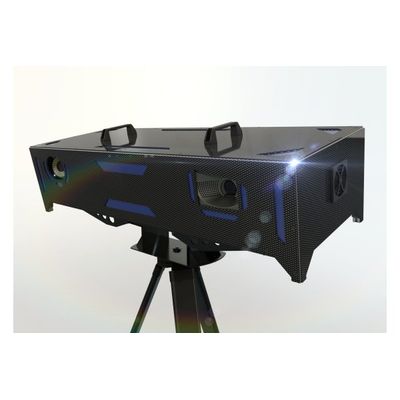

InspecVision - Model Opti-Scan OS800.35 -3D White Light Scanning System

Accuracy:

• Repeatability: 35 μm
• Volumetric: 35 μm

Resolution

• Field of View: 800mm
• Camera: >20MP
• Projector: >20MP

• Max Single scan area : 800mm (X) x 500mm (Y)
• Max Single scan depth : 500mm (Z)
• Volumetric accuracy : 70 microns
• Repeatability : 35 microns
• Point Spacing : Better than 170 microns
• Scanning speed : > 250,000 points per second
• Scanning time : < 10 seconds
• Processing time : < 5 seconds
• Peripheral equipment : USB lighting controller, Standard Computer Interface
• Recommended Operating System : Windows 10 64bit
• Software included: : 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software
• Free 3D Inspection Software: : Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans.
• Advanced 3D inspection software option (Geomagic Control) : Available on request. Comparison to 3D solid models, GD&T, SPC, cross-sections, full surface and edge inspection, creation of report templates, automated merging of point clouds, automatic alignment of scan to CAD, automatic point cloud processing and filtering, automatic detection or repositioning spheres, macro creation for full automation, automatic extraction of nominal data from CAD model, comparison of 2 scans.
• 3D reverse engineering (advanced package) : Available on request. Creation of 3D solid models from scan data.
• Calibration Kit : Included as standard, retro-reflective reference markers mounted onto steel plate with repositioning frame
• Accuracy Verification Object : Included as standard, calibrated ball bar
• Opti-Scan construction : Heavy duty aluminium tripod, dolly base. Camera and projector assemblies mounted on floating carbon fibre chassis
• OptiScan enclosure : ABS Carbon fibre effect
• Repositioning markers : Set of 24 loose magnetic photogrammetric markers to allow repositioning
• Optional light table : Optional light table for improved edge measuring accuracy. Manual or automatic component repositioning disc options
• Automated turn-table maximum load (UDL) : 50kg
• Camera : >20 megapixels
• Projection source : LED/laser projector
• Data cables : HDMI and USB3
• Power supply : 110-240V 50/60Hz
• Power consumption : 1.5 Amp maximum at 230 Volt, 3 Amp max at 110 Volt.
• EC directives : Compliant with Machinery, Low voltage and EMC Directives.
• Paint colour (powder paint) : Tripod and Dolly RAL 9005: Black
• Ambient operating conditions : 5-35 degree C
• Available configurations : L= Light Table A M = Manual Repositioning disc
• Approx Footprint width/ depth/ height/ weight : 1124mm (W) x 791mm (D) x 1574mm (H) <45kgs (Tripod)
• Approx Footprint width/ depth/ height/ weight : 2194mm (W) x 1176mm (D) x 2005mm (H) <960 kgs (LM )
• Standard packing : Export crates suitable for sea shipping
• Warranty : One year limited warranty on hardware and software
• Optional extended warranty : Two or three year extended warranty (requires software upgrade option)
• Software support option : Annual support contract provides free software upgrades
