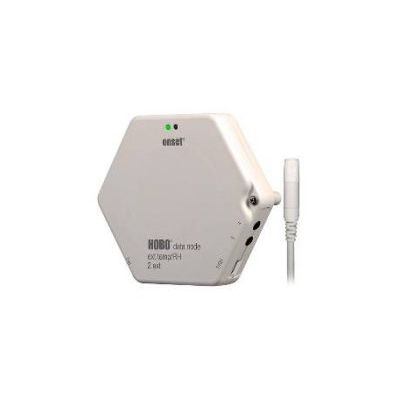

Hobo - Model ZW-007 -4-Channel Data Node with Temperature/Relative Humidity Sensor Probe
The HOBO® ZW-007 is an easy-to-deploy, 4-channel wireless data node. It includes an external 2m temperature/relative humidity sensor probe, and features two additional analog ports. It wirelessly transmits data in real time, reducing the costs and inconvenience associated with manual data offload.
Features:
- Wirelessly transmits real-time data
- Compact size for easy deployment wherever data is needed
- Accepts a wide range of external energy and environmental sensors
- Notifies you of alarm conditions via email or text messages
- Onboard buffer memory helps prevent data loss
- Powerful HOBOware® Pro software for organizing and viewing data (included with HOBO data receiver)
A complete system requires at least one wireless HOBO data node, HOBO data receiver, and HOBOware Pro software (included with HOBO ZW-RCVR). Depending on your system deployment, a HOBO data router (ZW-ROUTER) may be required.
Environment:
The ZW-007 is for use inIndoor environments
Measurements:
The ZW-007 supports the following measurements (some sensors 3rd-party);
Temperature, Relative Humidity, 4-20mA, AC Current, AC Voltage, Air Velocity , Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatts (kW), Volatile Organic Compound
ZW-007 Wireless External Temp, RH and 2-Analog-Port Node Specifications:
Buffer memory: approx. 3k measurements
Sample rate: 1 min to 18 hrs
Transmission rate: 2 min and greater
Power options:
AC power adapter, battery backup
Measurement range:
Temp: -40° to 70° C (-40° to 158° F)
RH: 5 to 95% RH
Analog channels: 0 to 2.5 Vdc; 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10); 4-20 mA (w/CABLE-4-20mA)
Accuracy:
Temp: ± 0.21° C over 0° to 50° C (± 0.38° F over 32° to 122° F)
RH: ± 2.5% from 10 to 90% typical, max. ± 3.5%
Analog: ± 1.544 mV plus 2 % (typical)
Operating Range:
Temp: -20 to 50°C (-4 to 122°F) when battery powered, -20 to 70°C (-4 to 158°F) when line powered.
Stability (drift):
Temperature: < 0.1°C (0.18°F) per year
RH:
Resolution:
Temp: 0.02° C @ 25° C (0.04° F @ 77° F)
RH: 0.03%
Analog channel: 0.6 mV
Response Time:
Temp: 5 min. in air moving 1m/sec (3.3 ft./sec)
RH: 10 min. in air moving 1 m/sec (3.3ft/sec)
Probe Size:
1 cm (.32 in) diameter; 1.8m (6 ft) cable
Range:
Approx. 100m (300ft.) depending on obstructions or interference
Weight: 138g (4.87 oz) with batteries
Dimensions: 96.5 x 108 x 28mm (3.8 x 4.25x 1.1 in)
Radio Power: 1.6 mW (2 dBm)
Wireless data Standard: IEEE802.15.4 2.4 GHz band
CE - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
