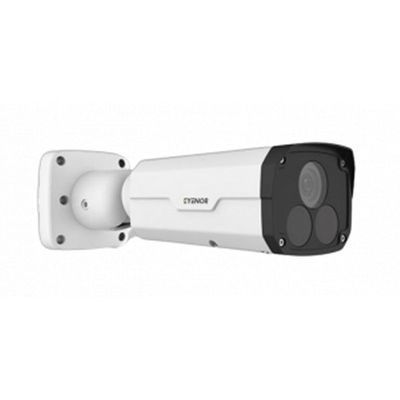

Eyenor - Model ENV-HBU7F-50R-20 -4MP Fixed Bullet Camera

MODEL

• Model No. : ENV-HBU7F-50R-20
• Title : 4MP FIXED BULLET CAMERA

CAMERA

• Image Sensor : 1/3" CMOS Progressive 4.0 MegaPixel
• Day / Night : IR-Cut Filter with Auto Switch
• Lens Type : Fixed
• Focal Length : 4 mm
• Detection distance : 90 m (4 mm Lens)
• Observation Distance : 36 m (4 mm Lens)
• Recognition Distance : 18 m (4 mm Lens)
• Identification Distance : 9 m (4 mm Lens)
• Angle of View (H) : 78.9°
• Angle of View (V) : 39.6°
• Adjustment angle : Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°
• Shutter : 1 ~ 1/100000s
• Min. Illumination : Color: 0.03 lux @ F2.0, B/W: 0 lux with IR on
• AGC : Auto / Manual
• S/N : >55 dB
• Smart IR : Up to 50 m
• Defog : Smart Defog
• WDR : 120 dB

VIDEO

• Video Compression : H.265+, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate : Main Stream: : 4MP (2592*1520) @ 20fps; 4MP (2560*1440) @ 25fps; 3MP (2304*1296) @ 30fps; Sub Stream: 2MP (1920*1080) @ 30fps Third Stream: : D1 (720*576) @ 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas
• Corridor Mode : Supported
• Digital noise reduction : 2D / 3D DNR
• De-warping : N/A
• HLC : Supported
• BLC : Supported

SMART

• Behavior Detection : Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire)
• Intelligent Identification : Loitering, Running, Abandoned Object (Object Left), Missing Object (Object Lost), Parking
• Statistical Analysis : Face Detection (Capture), People Counting, Abnormal Video & Audio Detection
• General Function : Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

INTERFACE

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatiblity : ONVIF (Profile S,G,T), API
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
• Edge Storage : Built-in MicroSD card slot, up to 256 GB
• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Network Storage : ANR
• Built-in Speaker : N/A
• Built-in Mic : N/A

GENERAL

• Power Supply : DC 12V, PoE (IEEE 802.3af)
• Power Consumption : Max 9 W
• Working Environment : -30°C ~ 60°C , Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -30°C ~ 60°C , Humidity: ≤95% RH (non-condensing)
• Ingress Protection : IP67
• Vandal Resistant : IK10
• Reset Button : N/A
• Dimensions (L × W × H) : 253.4 × 86 × 71.7 mm
• Weight : 1.0 kg
