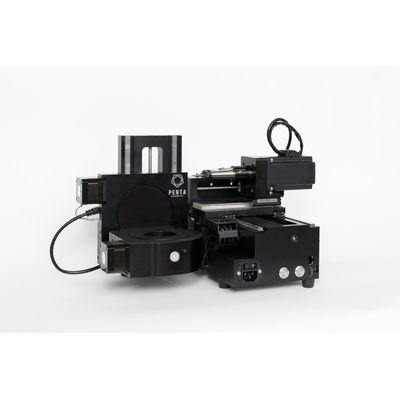

Pocket NC - Model V2-10 -5 Axis Desktop CNC Mill
Pocket NC 5 Axis Desktop CNC Mill V2-10 can cut materials up to a hardness of G5 titanium although optimally cuts delrin, aluminum or softer steels. Travel is 5.0 inches/128.3 mm (Y), 4.55 inches/115.5mm (X) and 3.55 inches/90.1mm (Z). The machine accepts standard G code.
The Pocket NC V2 machine is controlled by the U.S. government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) herein identified. They may not be resold, transferred, or otherwise disposed of, to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. government or as otherwise authorized by U.S. law and regulations.
Purchase includes (more accessories to consider can be found here):
- Pocket NC Mill V2-10
- One extended reach tool holder
- 1/8 inch ER11 collet
- Datron Single Flute End Mill, 3mm diameter, 1/8" shank
- Use of Pocket NC Simulator for simulating parts prior to cutting
- Pocket NC vise, hardware and vise adaptor to B-table
- 2" wax cube
- USB cable
- Power cord
- Pocket NC Limited Warranty
Note CAM software is not included. More information on supported posts can be found here.
