Xled Pro6mm Flexible Borescope Camera

SHARE

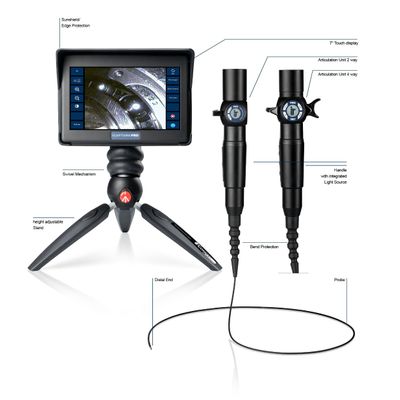

The small diameter videscope XLED PRO system consists of the 2.4mm, 3mm, 4mm or 6mm borescope camera. Videoscopes offer 2-way or 4-way articulation combining image quality imagery with cost effective system pricing. Interchangeable videoscopes maximize utility of a scalable X-Capture platform to satisfy all of your inspection needs in compact portable videoscope system configurations.

Most popular related searches

IT Concepts offers multiple options of the XLED PRO probe:

  • All videoscopes offer direct and side viewing options: 0° DOV (Direction of View) or side viewing 90° DOV, both with a 90° FOV (Field of View)
  • With all diameters offering lengths from 1 m to 7.5 m, the XLED PRO with X-Capture platform leaves nothing to be desired
With the new high powered FOLED (Fiberoptic-LED) hybrid-illumination of the XLED PRO videoscopes inspections are faster, more complete and more reliable. The X-Capture 7” Touchscreen display is menu driven for easy access to systems functions. The user has complete inspection capability including Wi-Fi and USB data exchange, establishing a complete and easy to handle Videoscope Inspection System. The XLED PRO Kit includes X-Capture, Touchscreen display or it may be configured with any HDMI display via the IT Concepts with our HDMI ZOOM and HDMI PRO devices. The DVR PRO is your inspection PC utilizing Wi-Fi, USB devices (mouse, keyboard) and is offered in a complete, light-weight portable case. User selectable configurations include table top operation via AC power or select the optional battery and charger to operate remotely.
  • In castings at foundries they are ideal for identifying blockages, inclusions, excess material, sand, scarring and burns
  • Check the machine finishes post-process and save time and money during in-process inspections
  • View cross-over holes, injector ports, spark plug holes and air passages with high resolution optics coupled to the X-Capture for data management and image enhancement capability
  • Share data internally via Wi-Fi communication live image streaming or exchange data via the integral USB port
  • Choose the optimum diameters based on your unique application needs
  • Modular kits allow for multiple videoscopes to be easily interchangeable, enhancing videoscope inspection capabilities while streamlining your inventories and reducing costs
  • Interchangeable videoprobes
  • 6mm borescope camera probe diameter
  • Ultra short tip
  • HD Micro-Chip on the tip
  • FOLED Hybrid-Illumination
  • 7“ Widescreen touch display
  • Portable documentation hub
  • Intuitive operation
