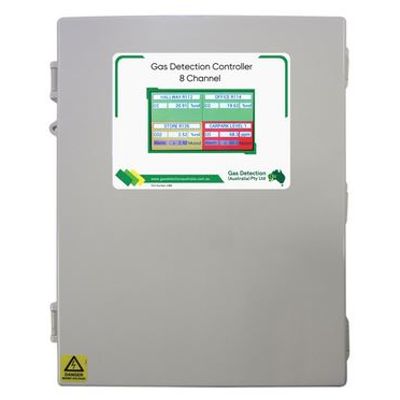

Model GDA 4288 -8 Channel Gas Detection Controller

There are 8 fully user configurable relays; and an additional fault relay. The GDA 4080 has a compliant MODBUS interface allowing all of the controller’s information to be read into a BMS systems. The system has an independent two wire comms system to drive remote mimic panels which indicate the current gas levels in their associated area. It is housed in an enclosure with a swing door making cable access and servicing easy.

GDA 4080-001 Features

• Up to 8x 4-20mA 2/3 wire inputs with contact for cable screen.
• Real time display of gas levels, alarms, and location name.
• All parameters are field programmable by user through a touch panel (passcode protected).
• Isolated MODBUS® V1.1b3 TIA-485(-A)/EIA-485 (RS-485) slave.
• Isolated GDA Extended Mimic digital output for use with the GDA 74000 series
• 8 x configurable dry contact relays with active led indicator, 2-amps @ 30 VDC each (60VA Non-inductive)
• Fail safe dry contact fault relay with onboard active led indicator, 2-amps @ 30 VDC each (60watts)
• Onboard 4-20mA sensor current simulator
• 4.3″ 480x272 colour TFT resistive touch display and remote display options available
• Universal switchable 100~120 / 200~240 VAC to 24 VDC @ 1.5A power supply, upgradable.
• Padlockable (less than 6mm shackle dia) Hinged door IP51 rated ABS enclosure.
• IP-67 IK-08 and different material enclosure options and accessories available.

Under Development

• Single internal software configurable 4-20 mA current output
• Dedicated siren/visual signal alarm output, internal buzzer onboard (mutable)
• Board expandability available to extend system functionality (sensor inputs, relay and current outputs,
  wireless/wired signal and communication Modules, Sensor Modules)
• Micro SD card socket for data logging

• Model GDA 4080 (specs based off P/N:4080-001)
• Inputs 8 x 4-20 mA sensors (loop or 3 wire)
• Output Types 8 x configurable + 1 x Fail safe dry contact fault relays, 1 x Muteable 24 VDC @ 200 mA serien/flasher O/P, 1 x Modbus Comms O/P, 1 x GDA Extended Mimic Comms O/P
• Relay Specification 30 VDC @ 2 A (60 w) max each
• Power Requirements 100 ~ 120 @ 0.8 A / 200 ~ 240 @ 0.45 A VAC
• Internal Voltage 24 VDC
• Display 4.3″ 480 x 272 TFT graphic color resistive touch display
• User Interaction Resistive touch screen display
• Comms Output Specification MODBUS® V1.1b3 TIA-485(-A)/EIA-485 (RS-485), GDA Extended Mimic
• Operating Temperature -20 ~ 70 °C
• Operating Humidity 5~90% RH (Non-condensing)
• Dimensions 400 x 313 x 100 mm (H, W, D)
• Weight 2.4 kg
• Enclosure Material ABS
• Enclosure Rating IP40 (IP-67 IK-08 Available)
• Warranty 24 months from date of dispatch
