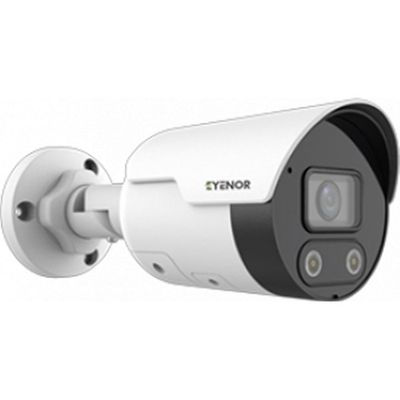

Eyenor - Model ENC-HCBAF-30R-11 -8MP Compact Fixed Bullet Camera

• Starlight Illumination
• 4/6mm Fixed Lens
• Smart IR Up to 30m
• ONVIF Profile (S/G/T)
• Triple Stream
• Built In Mic & Built in Speaker
• IP67,POE

MODEL

• Model No. : ENC-HCBAF-30R-11
• Title : 8MP COMPACT FIXED BULLET CAMERA

CAMERA

• Image Sensor : 1/2.7", 8.0 megapixel, progressive scan, CMOS
• Lens : [email protected] /[email protected]
• Detection distance : 72 m (4 mm Lens), 108 m (6 mm Lens)
• Observation Distance : 28.8 m (4 mm Lens), 43.2 m (6 mm Lens)
• Recognition Distance : 14.4 m (4 mm Lens), 21.6 m (6 mm Lens)
• Identification Distance : 7.2 m (4 mm Lens), 10.8 m (6 mm Lens)
• Angle of View (H) : 91.6° (4.0mm);54.2° (6.0mm)
• Angle of View (V) : 7.2 m (4 mm Lens), 10.8 m (6 mm Lens)
• Angle of View (O) : 112.7° (4.0mm);66.7° (6.0mm)
• Adjustment angle : Pan: 3° ~ 360° ,Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >52dB
• IR Range : Up to 30m
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Smart Defog
• WDR : 120dB
• Warm Light Range : N/A

VIDEO

• Video Compression : H.265+, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate : Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• 9:16 Corridor Mode : Supported
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas
• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Supported
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping : Supported
• HLC : Supported
• BLC : Supported

AUDIO

• Audio Compression : G.711
• Two-way Audio : Supported
• Audio In : N/A
• Audio Out : N/A
• Suppression : Supported
• Sampling Rate : 8KHZ
• Built-in Mic : Supported

SMART

• Behavior Detection : ntrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire)
• Intelligent Identification : Loitering, Running, Abandoned Object (Object Left), Missing Object (Object Lost), Parking
• Statistical Analysis : Face Detection (Capture), People Counting, Abnormal Video & Audio Detection
• Alarm Management : Motion Detection, Tampering (Masking), Input & Output Event, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot
• General Function : Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

INTERFACE

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatiblity : ONVIF (Profile S, Profile G, Profile T), API
• Client : Eyenor VMS
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
• Network : 10/100M Base-TX Ethernet
• Alarm I/O : N/A

GENERAL

• Power Supply : DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption : Max 8W
• Dimensions (Ø x H) : 191.3×72.6×70.9mm
• Weight : 0.5kg
• Material : Metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 2KV
• Ingress Protection : IP67
• Vandal Resistant : N/A
• Reset Button : Supported
