Co-NETIC - AA Perfection Sheet

SHARE

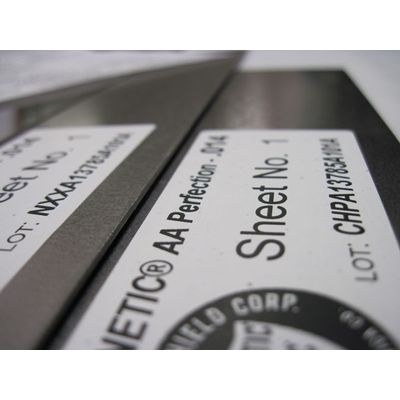

Co-NETIC® AA Perfection Annealed Sheet is used where high attenuation is desired. Available as fully annealed, ready for use in shielding applications, it is used for flat shields such as covers, panels, doors, plates, or walls and flat surfaces. Typically, no further annealing is required. In fact, we do not recommend re-anneal as this may cause structural degradation.
Most popular related searches
controlled environment

Availability:
Usually Ships Within 24 Hours. We offer shearing services to cut blanks to the sizes you need

Standard Width:
30.0 in / 762,0 mm

Handling Fee:
Crate Charges May Apply

Purchase Discounts:
Price Discounts at $1000 / $2500 / +$5000 order

Perfection Annealed Sheet has been fully annealed to exacting specifications in a quality controlled annealing environment which builds grain structure, an important mechanical property required for ultimate shielding performance. Perfection Annealed sheet is available in stock gauges from 0.014 in / 0,36 mm to 0.080 in / 2,00 mm thickness.

Conforms to ASTM A753 Alloy 4, and MIL-N-14411C Comp 1.

Shearing or Blanking Services: Stock sheet may be sheared to smaller blanks per your request.

Item Number Thickness Width Length
CP014-30-14         0.014 in 0.36 mm         30.00 in 762.0 mm            14.00 in 355.6 mm
CP014-30-29 0.014 in 0.36 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP014-30-59 0.014 in 0.36 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP020-30-14 0.020 in 0.50 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP020-30-29 0.020 in 0.50 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP020-30-59 0.020 in 0.50 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP025-30-14 0.025 in 0.64 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP025-30-29 0.025 in 0.64 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP025-30-59 0.025 in 0.64 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP030-30-14 0.030 in 0.76 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP030-30-29 0.030 in 0.76 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP030-30-59 0.030 in 0.76 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP040-30-14 0.040 in 1.00 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP040-30-29 0.040 in 1.00 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP040-30-59 0.040 in 1.00 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP050-30-14 0.050 in 1.27 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP050-30-29 0.050 in 1.27 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP050-30-59 0.050 in 1.27 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP062-30-14 0.062 in 1.58 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP062-30-29 0.062 in 1.58 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP062-30-59 0.062 in 1.58 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
CP080-30-14 0.080 in 2.00 mm 30.00 in 762.0 mm 14.00 in 355.6 mm
CP080-30-29 0.080 in 2.00 mm 30.00 in 762.0 mm 29.00 in 736.6 mm
CP080-30-59 0.080 in 2.00 mm 30.00 in 762.0 mm 59.00 in 1499.0 mm
