Model 313 and 323 -Absorptive Mufflers

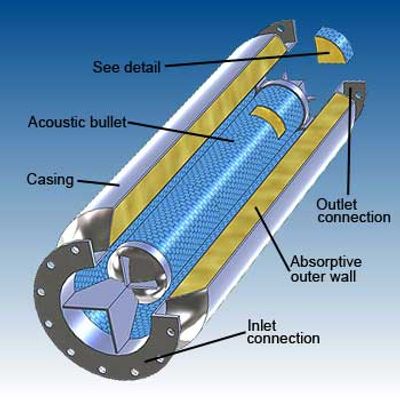

Model 313 mufflers; Straight through circular design with absorptive acoustic liner, but without a center bullet. No obstructions in the airstream. Good for smaller diameter connections and when low pressure drop is important. Model 323 mufflers; Circular design with acoustic liner and a center bullet when substantial noise reductions are required. Aerodynamically designed for maximum attenuation with minimum pressure drop.
Most popular related searches
muffler
exhaust muffler
exhaust silencing
turbine exhaust
exhaust silencer
engine emissions
noise control
expansion joint
centrifugal blower
acoustic protection
- Turbine exhaust mufflers
- Low pressure turbo engine exhaust mufflers
- Engine and turbine intake mufflers
- Centrifugal blower and compressor intake and exhaust silencers
- Any application requiring low pressure and/or high mid-upper band attenuation
- Sizes for any connection diameter to fit the equipment in question
- Custom designed and manufactured to meet the attenuation needs and pressure drop constraints of each application
- Absorptive acoustic media protected by high temperature cloth and 304 ss mesh liners
- End intake and exhaust, as well as side intake and exhaust connections available
- Mounting brackets, support legs, saddles and feet for muffler installation
- Tail pipes, rain cowls and caps
- Access panels for inspection of internals
- Companion flanges and expansion joints
- Flows: Up to 500,000 acfm
- Pressures: Up to 120" wg
- Temperatures: Up to 1,200° F
- Sizes: From 3" ID X 24" long to 120" ID X 240" long
- Unit weight: Up to 25,000 lbs
- Materials: Carbon, stainless and corten steels
- Construction: 12 ga to 3/8" casings with 12 ga internals designed for thermal expansion
- Paint finishes: High heat aluminum or black, as well as a variety of low temperature paints
