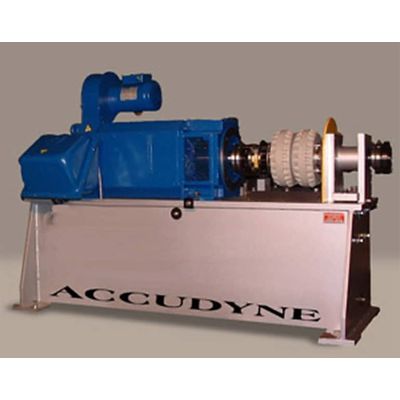

Model AccuDyne -AC Dynamometers
AccuDyne™ AC Dynamometers Provide Accurate, Versatile Testing Systems to Meet Your Most Stringent Requirements. The AccuDyne™ 4-quadrant dynamometer is highly versatile, with the ability to fulfill testing needs for a wide array of systems and components. Full motoring and loading capabilities give the AccuDyne a wide range of testing abilities suitable for power-producing components, such as engines and electric motors, as well as loading components, such as transmissions, pumps, generators, alternators and more.
AccuDyne dynamometers are fully configured to meet each client’s end use requirements. With models ranging from 5 kW through 20 MW, the AccuDyne is capable of testing small and precise devices as well as heavy-duty equipment. Each AccuDyne dynamometer system is tailored according to your requirements for rated power, rated torque and max speed. The AccuDyne and completed dynamometer system is designed to meet the specific needs of your particular tests and test articles with many special options and features available.
- A versatile testing system ranging from 5 kW through 20 MW
- Configured to meet your unique testing needs
- Suitable for power-producing components, including engines and motors, as well as loading components, including transmissions, pumps, generators, alternators etc.
- Capable of full bi-directional loading and motoring of the device under test
- Can provide full rated torque at stall (zero RPM)
- Uses either line regenerative power absorption or resistive power dissipation
AccuDyne dynamometers offer completely seamless crossover between motoring and loading modes, providing true simulation of real-world, in-use events. These dynamometers are not only versatile and able to meet challenging testing conditions, but they are also highly accurate and energy-efficient.
Fully Regenerative
Fully regenerative capabilities allow power to return to AC mains, saving energy costs significantly compared to brake-based dynamometers. Non-regenerative options are also available.
Precise Speed and Torque Control
These dynamometers offer full torque to zero speed control while providing exceptional accuracy for torque measurements (0.05 percent full scale typical, 0.01 percent optional).
Overload Capabilities
Up to 200% overload capability allows the dynamometer to be sized for continuous power, rather than brief transient events.
