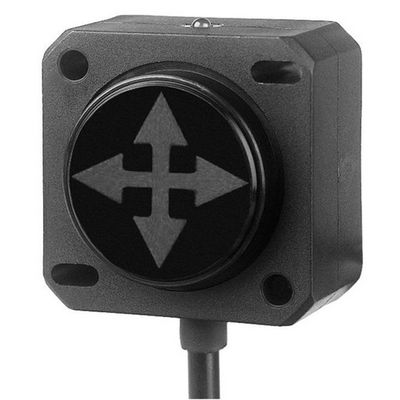

DIS - Model QG40N-KAXYZh-4,0-AV-PT -Acceleration Sensor

Model: QG40N-KAXYZh-4,0-AV-PT, Sensor type: Acceleration sensor, Number of axis: 3 axis, Measuring range: Factory defaults: ± 4 g, Output: 0,5 - 4,5 V, Supply voltage: 6 - 30 V dc, Centering: Yes (2,5 V = 0 G), range ±5° (horizontal axes only), Resolution: 4 mg, Accuracy: overall 0,15 g typ., Bandwidth: 0 - 50 Hz, Dimensions: 40x40x25 mm, Housing: Plastic injection molded housing (Arnite T06 202 PBT black), Connection: 2 m PUR/TPE Li12y11y, black Ø 5,2 mm, wires: 6x0,34 mm² DIN colors, Temperature range: -40 .. +80 °C, Certification: CE, Housing options: Plastic (std), Connectivity options: 2m PUR cable (std), PVC cable, other cable lenghts, M12, Interface options: 4-20mA, 0.5-4.5V, 0-5V, 0-10V, 1-9V, Certification options: CE (std), UL, cTUVus
