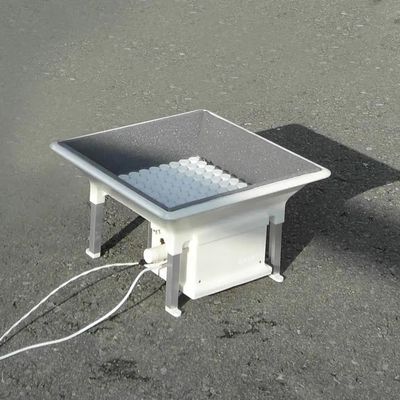

Remtech - Model PA-XS -Acoustic Wind Profiler

FromRemtech S.A.

SHARE

The PA-XS Sodar includes the latest hardware design. The electronics has been down sized by an extensive use of the SMC
technology. The computer par t uses an ARM Quad Core CPU which is plugged on a 16 bits A/D conver ter board. All the hardware
matches military specifications (-40 to +60 °C with up to 100% relative humidity) and is fixed underneath the antenna. Wireless
modem or satellite connections are available. This new design includes GPS, 2D inclinometer, Wi-Fi, as well as pressure, temperature and humidity measurements.

Most popular related searches

temperature and humidity sensor

pressure and temperature sensor

wind shear monitoring

humidity sensor

humidity measurement

numerical modeling

pollution dispersion

acoustic enclosure

400 meters average range.
l0 meters minimum altitude.
Multi-frequency coding.
ARM Quad Core CPUand linux operating system.
10 watts total power consumption.
7 kg total weight
GPS, 2D inclinometer, pressure, temperature and humidity sensors.
WiFi for local control (up to l00 m distance).
Wireless modem and/or satellite terminal for remote control.

A state of the art hardware and software...

Flat-array antenna designed with numerical modelization
Very small electronic case with low power consumption
Innovative Signal processing:

Multi frequency-coding
Adaptive S/N variation per frequency point
Apparent angle of arrival technique
Unique Noise Subtraction Technique

...allows Remtech to offer the smallest and most performant systems in the market

automatic real-time data validation
easy to install system and to select software parameters
work under extreme weather conditions (-40° C to + 60° C)
GPS, 2D inclinometer, pressure, temperature and humidity sensors
WIFI for local control (up to 100m); Wireless modem and/or Satellite terminal for remote control
Solar panels, antenna heating, extra acoustic enclosure and other additional options are also available

Antenna weight: 1.850 Kg
Antenna dimensions: 24 cm(L) x 24 cm(W) x 4 cm(H)
Electronic case weight: 3.1 Kg
Electronic case dimensions: 20 cm(L) x 20 cm(W) x 15 cm(H)
PA-XS total weight: 7,3 kg (antenna, electronic case and support)
Central frequency: 5,50 Khz
Operating frequencies: Up to 9 emitted frequencies on each of two coplanar beams
Acoustic power: 5 W
Operating conditions: -40°C to +60°C with up to 100% relative humidity
CPU and RAM: ARM Quad Core, 1 Gbytes
Power consumption: 0.40 Amp @ 24 VDC (9.6 W)
Operating system: Linux
Average altitude range: 400 m (40dBA, 15°C air temperature, 70 % Relative Humidity)
Minimum altitude: 10m

For local remote control a powerful netbook is supplied It interconnects with the Sodar through Wi-Fi at a distance of up to one hundred meters.:

Wind energy and power plant site assessment
Environmental impact analyses
Wind shear detection on airports
Regional wind studies for pollutant dispersion analysis
In and offshore studies
Meteorological studies
Military applications
