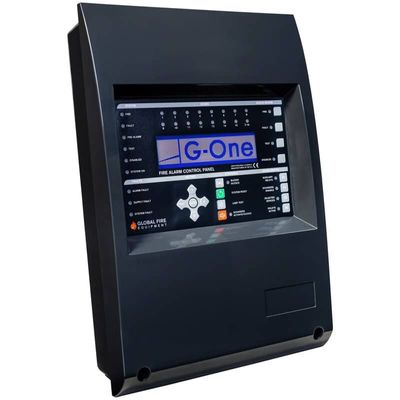

GFE - Model G-One -Addressable Fire Control Panel

Designed with affordability and flexibility in mind, the G-One combines sophisticated design with easy installation and intuitive commissioning, making it the ideal solution for a wide range of single loop applications, from offices and restaurants, to shops, schools and more.

The G-One incorporates sophisticated Chameleon peer-to-peer multi-master network communications and powerful cause and effect programming capability. It can be networked with up to 32 fire control panels from the GFE range and has a high-integrity digital protocol for resilient high-speed monitoring and data communication with up to 250 devices on a single loop. Easy to install, programme and operate, the G-One can be either surface or recessed mounted.

A unique installer-friendly dynamic, automatic self-learn facility bypasses the traditional manually initiated auto-learn process. Other features include a unique high resolution back-lit blue graphical LCD display, which ensures a clear and effective user interface. The G-One is fully compatible with all GFE-manufactured digital analogue-addressable loop devices and its menu structure is identical to existing GFE panels, ensuring familiarity and ease of operation for users.

• MAINS POWER SUPPLY RATING : 90V AC to 230V AC
• PRIMARY DC SUPPLY : 28.5V DC @ 2.4 A (Max)
• SECONDARY SUPPLY : 21.6 (Min) – 27.2V DC (Max) – Battery charger: 27.5V DC
• BATTERY MAX. CAPACITY (INTERNAL) : Standard box: 2x 12V 7AH; Deep box: 2x 12V 12AH
• QUIESCENT CURRENT (NO DEVICES) : 52mA
• AUX POWER OUTPUT : 2 x 24V DC 300mA / 1 x 24V switched output
• MAXIMUM LOOP OUTPUT CURRENT : 1 loop – 900mA alarm peak/165mA quiescent
• LOOP TOPOLOGY : Class A (loop) or Class B (radial)
• LOOP CABLE : Fire resistant 2 x 1.5mm (max 1200m) or 2 x 2.5mm (max 2000m)
• CONVENTIONAL SOUNDER CIRCUITS : 500mA for conventional sounder circuits a+b
• AUX. RELAYS FIRE : 2 x rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive/ 0.25A @ 240V AC resistive
• AUX. RELAY FAULT : 1 rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive/ 0.25A @ 240V AC resistive
• GRAPHICAL LCD DISPLAY : High definition, high contrast blue backlit 240×64 pixels
• COMMUNICATION CHANNELS : 2 x configurable communication ports
• BMS OUTPUT : ODYSSEY (Graphical software), TCP IP-WEB (remote web monitoring), MODBUS RTU, ESPA 4.4.4
• SOFTWARE CONNECTION : USB type B
• EVENT LOG : 10000 events
• OPERATING / STORAGE TEMPERATURE : -10ºC to 50ºC
• HUMIDITY : Max. 85% RH Non-Condensing
• INGRESS PROTECTION / MATERIAL : IP30 / ABS
• DIMENSIONS : Standard box: 273 (L) x 404 (H) x 107 (W) mm; Deep: 273 (L) x 404 (H) x 142 (W) mm
• WEIGHT : 1.6 KG (no batteries)
• ENCLOSURE COLOURS : White (RAL 9003), Red (RAL 3001) or Anthracite (RAL 7016)
