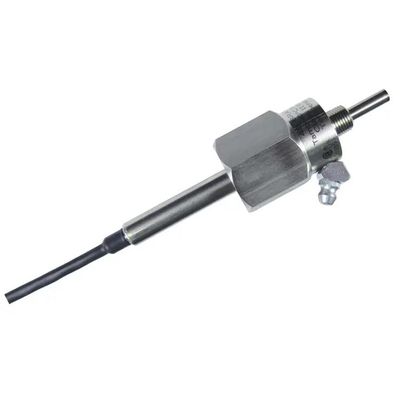

4B Group - Model Milli-Temp Series -Adjustable Depth Bearing & Surface Temperature Sensor
The Milli-Temp series can be used on any application where bearing temperature monitoring is needed. The Milli Temp is a loop powered analogue sensor with a 4-20 mA linear output that is scaled across a temperature range for continuous temperature monitoring.
The sensor has been designed to allow the depth of the probe to be adjustable depending on your application. The sensor screws directly into a bearing housing through the existing grease zerk thread. Each sensor is fitted with a zerk to allow lubrication of the bearing without the need for removal of the sensor. For surface mount applications, a lug style adaptor bolts directly onto a bearing housing, motor, gearbox, or machine casing.
The mounting hole is 9.5mm from the factory, but can be drilled up to 12.5mm if needed. The sensor is supplied with a 3m cable. The connections are not polarity sensitive therefore special connection requirements are eliminated, and the cable can be extended in the field.
- 4-20 mA Output
- Screw in Positive Mount Installation (Bearing Temp.)
- Grease Zerk for Bearing Lubrication (Bearing Temp.)
- Lug Style Adaptor (Surface Temp.)
- 304 Stainless Steel Body
- Belt Conveyor ,
- Bucket Elevator ,
- Chain Conveyor ,
- Screw Conveyor
