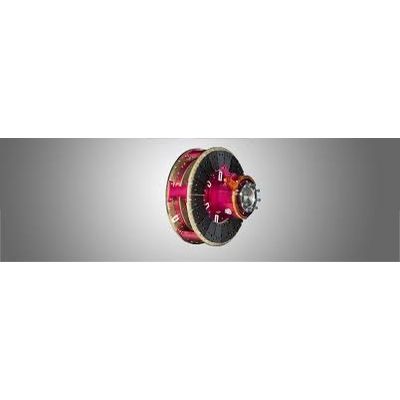

Magnadrive - Adjustable Speed Drive

Lower Maintenance and Operating Costs

Vibration-related issues cause over 80% of rotary equipment failures.

With our patented Air Gap technology, MagnaDrive motors transfer torque from motors to driven equipment without contact. Without shaft-to-shaft physical connection and the vibration-related issues that come with it, your risk of equipment trouble (and your maintenance and operating costs) is much lower.

This “disconnected connection” provides reduced vibration that increases bearing and seal life, which protects your investments.

Energy Savings

Our ASDs are nearly 100% efficient, with no energy loss from ancillary equipment.

Simple, reliable and low cost, the MagnaDrive ASD also provides the energy savings of speed control without the problems that often accompany variable frequency drives. Our ASDs reduce system complexity, minimize vibration and eliminate alignment problems.

Additionally, you can resize motor systems for lower cost, more efficient operation.

[Get Started Today]

MagnaDrive ASD Applications and Industries

Among others, these applications currently benefit from using the MagnaDrive ASD:

• Pumps
• Fans
• Blowers
• Centrifuges
• Bulk handling equipment

Our ASD also serves an array of industries:

• Water and wastewater treatment
• Pulp and paper manufacturing
• Power generation
• Oil and gas processing
• Cement
• Mining
• Chemical and food processing
• Irrigation
• Maritime
• HVAC

These installations show significant energy savings and less system vibration.

ASDs control motors’ operating speeds by continually changing the electrical frequency as necessary.

Ideal for pump, fan and blower applications, our MagnaDrive ASDs are available in sizes ranging from 5 to 4,000 horsepower and in speeds up to 3,600 RPM.

While usually designed for process control, ASDs have other major benefits, including lower maintenance and operating costs and energy savings.

The MagnaDrive Adjustable Speed Drive (ASD) product line comes in four basic sizes: Small, Medium, Large and Mega. In order to identify generally which size is right for your application please review the Drive Sizing Chart below.

To select an ASD for your system, determine the maximum running horsepower and maximum running speed required by your pump or fan. The maximum speed and horsepower needed in a system with MagnaDrive speed control is usually less than in a fixed speed system using dampers or throttling valves. Both the speed and horsepower information is important, since the MagnaDrive ASD must be sized to deliver the maximum torque needed in your system.

The MagnaDrive ASD requires some slip between the driven speed and the output speed. The ASDs sized in this table have 1% to 4% slip when operated at full rated motor speed and torque. This information is for general sizing only. Contact MagnaDrive Application Engineering for detailed information on your particular installation.

MagnaDrive Adjustable Speed Drive Sizing Chart

Centrifugal applications only (pumps, fans, blowers, mixers). For non-centrifugal applications, contact MagnaDrive.
