ESCO -Â Advanced Oxidation Systems

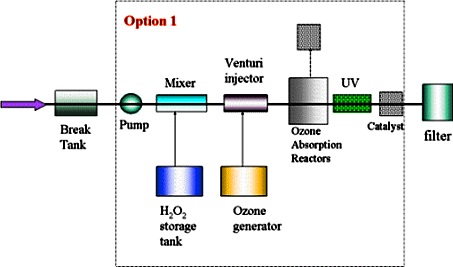

ESCO International has, through intensive research and site trials, developed a unique advanced oxidation process, the CATADOX. The CATADOX process combines treatment by ozone, UV, hydrogen peroxide and when required a proprietary solid state catalyst. The CATADOX performs excellently in challenging applications such as micro-pollutant oxidation, non-biodegradable COD removal, enhanced TOC reduction, VOCs abatement, toxicity reduction.
The CATADOX enables the industry to meet the ever-tightening environmental standards for wastewaters and industrial gases. The process offers substantial capital and operating cost savings when compared to conventional processes. The CATADOX is the most reliable and clean process available to meet stringent standards without creating wastes or further treatment.
ESCO International’s advanced oxidation processes offers high-performance destruction of TOC, COD and a wide range of refractory organic compounds in industrial and municipal applications. The processes use optimised combinations of Ozone, UV, H2O2 and a proprietary catalyst.
Our advanced oxidation processes include the following standard Features:
- Multiple ozone, H2O2 injection points
- Optimized ozone, H2O2 dosing
- Very high ozone mass transfer due to high performance ozone injection devices
- variable ozone gas concentration, up to 12%wt
- Optimised oxidation reaction times
- up to three stage oxidation process
- Complete process instrumentation
- Siemens-PLC S7-200 for operation & Text display as human machine interface
- Low power catalytic ozone off-gas destruction
Our AOP systems provide simple and cost effective treatment for:
- Industrial, Municipal water treatment & reuse
- Potable Water treatment
- Process water treatment & reuse
- ground water remediation
- Irrigation
- Cooling water systems
- Commercial water treatment & reuse (Hotels, Housing Developments, golf Courses, Business Parks)
- swimming pools & spas
- Food & beverage & Dairy industries
Applications
- Reduction of Total organic carbon (TOC) and Chemical Oxygen Demand (COD)
- Destruction of Endocrine Disrupting Compounds (EDCs)
- Destruction of Pharmaceuticals and Personal Care Products (PPCPs)
- Destruction of Active Pharmaceutical Ingredients (API)
- Destruction of Trace Pharmaceuticals
- Destruction of Pesticides & Herbicides
- Destruction of Organic Compounds
- Taste, Odor & Color removal
- Disinfection & Virus Removal
- Disinfection of biological fluids
- Allows experimentation with different loadings
- Demonstrates effluent treatability
- Enable you to conduct trials on your own site with the actual effluent to be treated
- Establishes precise design parameters
- Accurately predicts capital & operating costs
- On-site destruction treatment technology
- No phase transfer required, thereby eliminating secondary handling
- Efficient against a wide range of contaminants VOCs, PAHs, PCBs, TOC & COD,IPA, TMAH, NMP, DMSO, Glycols, EDCs (Endocrine disrupting compounds), PPCPs (Pharmaceuticals & Personal Care Products), API (Active Pharmaceutical Ingredients), Alcohols, Ethers, MTBE, Urea, and many other refractory organic contaminants.
- Low maintenance and operating requirements
- Quiet and unobtrusive equipment
- Safe and environmentally friendly
- Ozone generation system
- Ozone and hydrogen peroxide injection system
- Catalyst system
- UV Oxidation system
- Residual ozone destruction system
- Ozone monitors
- pH correction
- Oxygen generator
- dry air unit
- Containerised systems
- design & engineering support
- applications consulting
- equipment servicing
- laboratory testing
- pilot testing

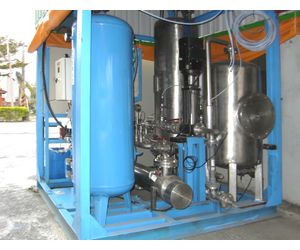

- Advanced oxidation pilot units
- Industrial skid packages O3/H2O2, UV/O3, UV/H2O2, UV/O3/H2O2, CATADOX
- Custom-designed advanced oxidation and ozone systems
If you are thinking of installing on-site advanced oxidation plant for wastewater reclaim, it is sometimes necessary to carry out pilot studies to ensure that the correct design criteria are used for the full scale plant.
ESCO International recommends that the pilot plant evaluation work is carried out for at least one week.
