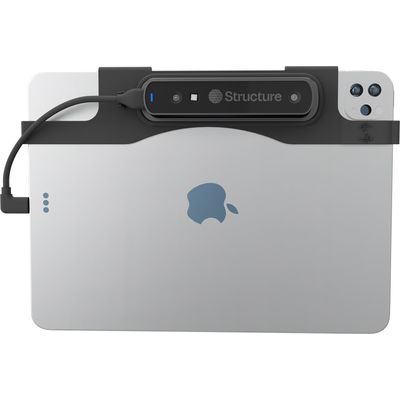

Structure - Model Sensor 3 -Advanced Scanning Solution for iPad
The Structure Sensor 3 for iPad offers powerful and precise 3D scanning capabilities tailored for a variety of professional applications. Designed to integrate seamlessly with the iPad, it features a highly efficient processor that enhances its scanning performance while consuming 20% less power, thanks to its custom-designed heatsink and advanced thermal dissipation technology. The sensor`s durability is highlighted by a robust construction that includes 30% thicker housing, an integrated aluminum mounting plate, and a reinforced internal chassis. These features ensure resilience under demanding conditions. The included Structure SDK facilitates further customization and development possibilities, allowing technical users to tailor the sensor`s functionality to their specific needs. Outfitted with enhanced battery life, the Structure Sensor 3 is ready to handle extensive scanning tasks efficiently.
- Structure Sensor 3
- USB charging cable
- bracket
- lightning/USB-C cable
XRPro, LLC warrants that, for a period of three hundred sixty-five (365) days from the date that your Structure Sensor is delivered to you: (a) your Structure Sensor 3 will comply with XRPro's specifications for such Products, and (b) your Structure Sensor 3 will be free from material defects in material, design and workmanship. For more information about the Structure Sensor's warranty, please read the Terms of Sale.
- Dimensions (W X H X D) : 115.5 mm X 25.5 mm X 29.1 mm
- Weight : 115 g
- Accuracy : 1 mm
- Minimum distance : 33 cm
- Maximum distance : 20 m
- Operating temperature : 0 to 35° C
- IR Resolution (H X V) : 1080 X 1200 (max)
- Depth resolution (H X V) : 1040 X 1200 (max)
- Frame rate : 30 fps (typical), 45 fps(max)
- Battery life : 3.5 hr+ (operation), 48 hr+ (standby)
- Field of View (H X V) : 50° X 59°
- Illumination : Class 1 Laser Projector
- Operating wavelength : 940 nm
- Use Environment : Indoors: Defused light, Outdoors: Overcast skies or shade
