Fluenta - Model FlarePhase 250 -Advanced Transducers

THE NEXT GENERATION OF ULTRASONIC FLOW MEASUREMENT

What makes this a next-gen ultrasonic transducer?

Being a new generation of ultrasonic transducers, the FlarePhase transducers feature the novel “Active Phase Analysis Technology” and continuous measurement optimization.

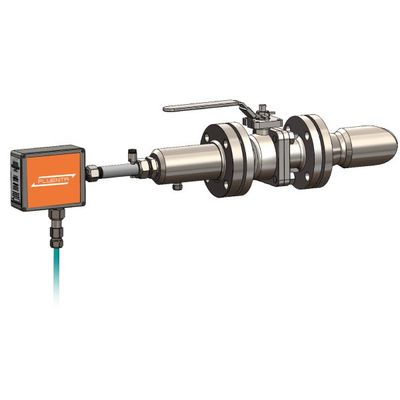

The core offering of Fluenta’s advanced range of ultrasonic transducers, the FlarePhase 250, comes equipped with a new piezo-electric sensor made from advanced ceramics which ensures that they it only has a wider operating temperature range but is also able to operate at those temperatures for an extended period of time. Packaged with the the FlareAmp and FlareAmp controller and also featuring the “Active Phase Analysis Technology” and continuous measurement optimisation, it boasts accuracies as high as ±0.75% making it a truly next generation ultrasonic measurement solution.

Active Phase Analysis Technology
The “Active Phase Analysis Technology” combats the issue of phase shifts, which is an inherent issue faced by ultrasonic measurement devices and results in inaccuracies. By determining the phase shifts and calculating the necessary compensation, the FlarePhase range provides laboratory levels of accuracy in the field.

Configurations
The FlarePhase 250 can be installed in either a single path or a dual path configuration. The dual path can be configured to either provide heightened security in terms of redundancy, when data continuity is of utmost importance or a more accurate measurement as with a dual path accuracy as high as ±0.75% can be achieved.

Wider Pipe Diameters
The FlarePhase 250 transducers can now measure across a wider range of pipe diameters ranging from pipes 6″ to 100″ in diameter making it a much more versatile ultrasonic flow measurement solution

• MEASUREMENT PARAMETERS : Standard and actual volume flow, mass flow, totalized standard volume flow, totalized mass flow, molecular weight, standard density, actual density, pressure, temperature, speed of sound, gas velocity
• CERTIFICATIONS
• ATEX: ExVeritas 20ATEX0699 X
• IECEx: EVX 20.0044X
• OPERATING TEMPERATURE : -328 to 482 °F (-200 to 250 °C)
• OPERATING PRESSURE : 11.6 – 145 psiA (0.8 to 10 barA)
• FLOW VELOCITY RANGE : 0.1 – 394 ft/s (0.03 – 120 m/s)
• ACCURACY
• Standard: ± 2.5% to 5%
• Optional: ± 0.75% to 2%
• REPEATABILITY : Better than 1% of volume flow for specific velocities
• TURN DOWN RATIO : 4000:1
